Keithley

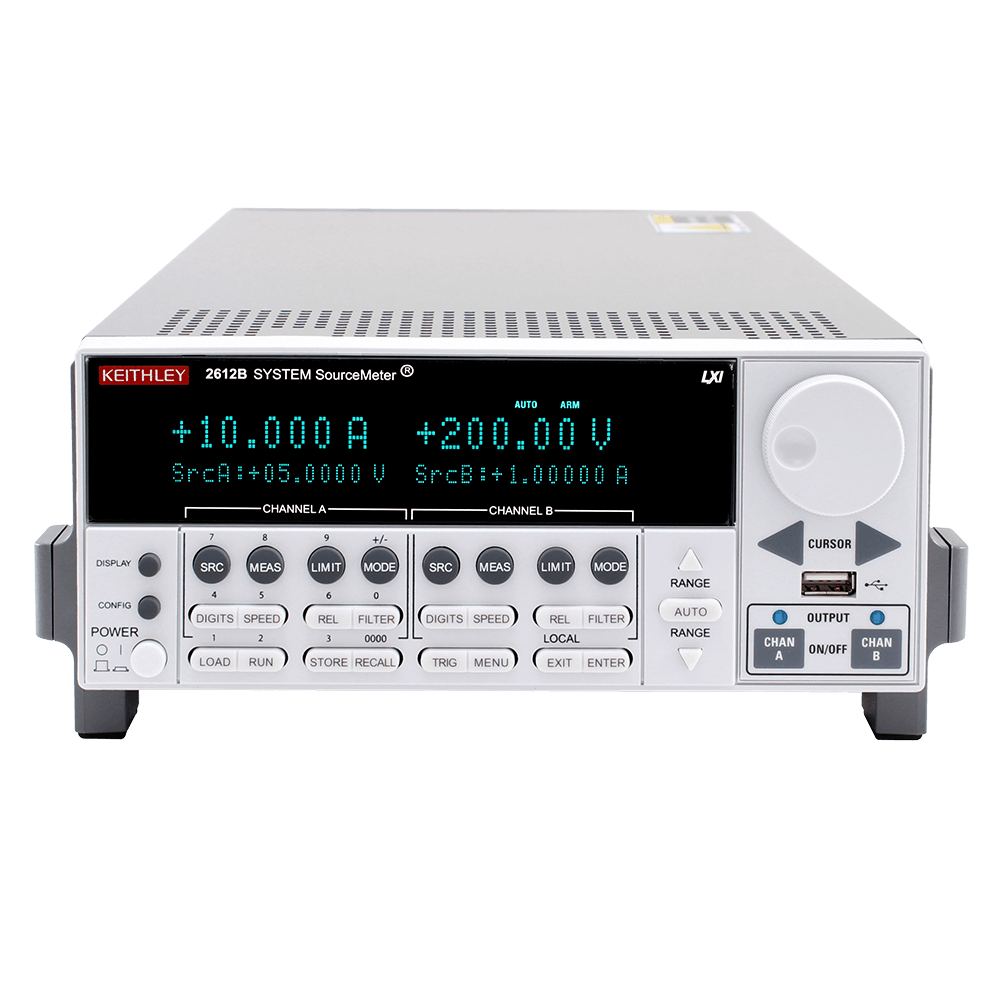

Keithley 2612B
Dual-Channel System SourceMeter, 200V
SourceMeter (SMU) Instrument type
2 Number of channels
±200 V Maximum voltage (source/measure)
±1.5 A per channel Maximum current (DC)
±10 A per channel Maximum current (pulse)
| Attribute | Value |
|---|---|
| Instrument type | SourceMeter (SMU) |
| Number of channels | 2 |
| Maximum voltage (source/measure) | ±200 V |
| Maximum current (DC) | ±1.5 A per channel |
| Maximum current (pulse) | ±10 A per channel |
| Maximum power (DC) | 30.6 W per channel |
| Minimum current resolution | 100 fA |
| Minimum voltage resolution | 1 µV |
| Measurement resolution | 6½ digits |
| Interfaces | GPIB, USB, LAN (LXI), RS-232, Digital I/O, TSP-Link |
| Programming | TSP (Lua) |
The Keithley 2612B is a dual-channel System SourceMeter rated to 200 V, 1.5 A DC and 10 A pulsed per channel. It combines precision sourcing and measurement with Test Script Processor (TSP) technology and TSP-Link expansion, making it a flexible choice for semiconductor, component and materials I-V characterisation in both R&D and production.
Testwall can supply the used Keithley 2612B fully tested, with calibration available on request and delivery across Europe. Send us your requirements and ask for a quote.
