Keithley 3706-NFP
| Attribute | Value |
|---|---|
| Number of Slots | 6 |
| Maximum Switch Channels | 576 two-wire channels |
| Measurement Functions | DC voltage, AC voltage, DC current, AC current, resistance (2-wire and 4-wire), frequency, temperature |
| Reading Rate | Up to 1,000,000 readings per second |
| Interface | GPIB, RS-232, LAN (LXI Class C compliant) |
| DC Voltage Measurement Range | 100 mV to 300 V |
| Resistance Measurement Range | 100 Ω to 1 GΩ |
| Memory | Up to 450,000 reading storage |
| Power Requirements | 100–240 VAC, 50/60 Hz, 150 VA maximum |
| Form Factor | 2U full-rack mainframe (no front panel controls) |
| Model | 3706-NFP |
|---|

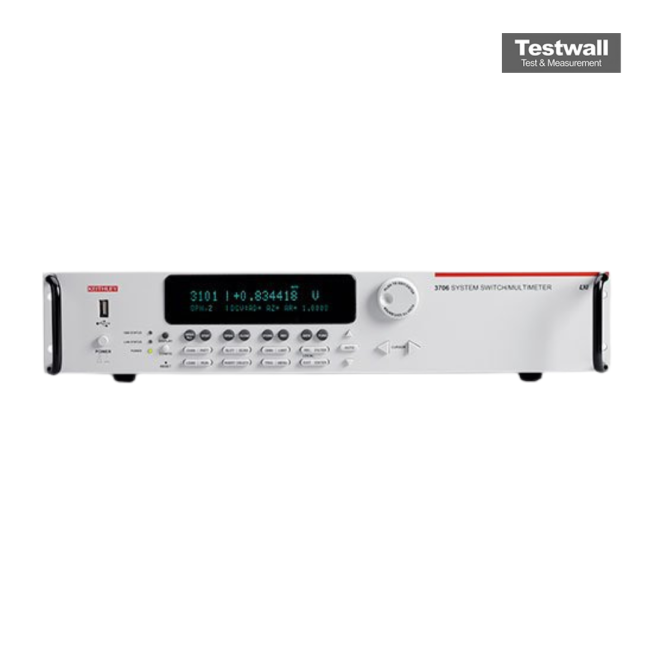

The Keithley 3706-NFP is a high-performance 7.5-digit DMM and switch mainframe without a front panel, designed for automated testing environments. It supports up to six plug-in switch and control modules, enabling a maximum of 576 two-wire multiplexer channels. With integrated LXI and GPIB interfaces, it delivers rapid data throughput and accurate measurements in complex testing systems.
Ideal for production test, R&D, and automated data acquisition applications, the Keithley 3706-NFP ensures flexible, reliable operation across diverse testing needs.
Testwall can supply the used Keithley 3706-NFP, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 3706-NFP.
