Keithley 3723
| Attribute | Value |
|---|---|
| Number of Channels | 60 channels (30 two-pole or 15 four-pole) |
| Switch Configuration | Dual 1×30 Multiplexer / Matrix |
| Maximum Voltage | 300 V DC or peak AC |
| Maximum Current | 1 A per channel |
| Contact Resistance | <1 Ω initial |
| Insulation Resistance | >10⁹ Ω at 500 V DC |
| Relay Type | Electromechanical reed relays |
| Relay Life | 10⁸ operations (typical) |
| Compatible Mainframe | Keithley Series 3700A System Switch/Multimeter |
| Form Factor | Single-slot plug-in card for 3700A mainframe |
Keithley 3723 Options:
- 3723 - 3723-3Y-EW-STD - 1-year factory warranty extended to 3 years from date of shipment
- 3723 - 3723-5Y-EW-STD - 1-year factory warranty extended to 5 years from date of shipment
- 3723 - C/3723-3Y-STD - 3 (Z540-1 compliant) calibrations within 3 years of purchase
| Model | 3723 |
|---|

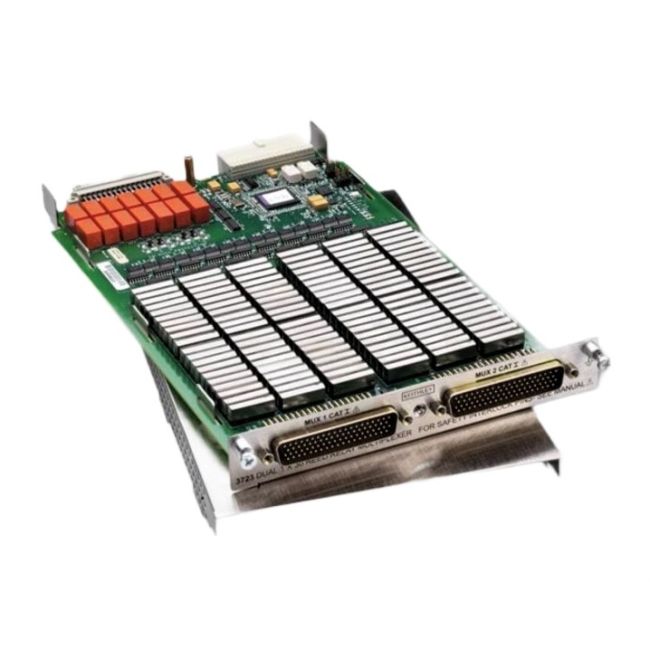

The Keithley 3723 High Speed Multiplexer Card features dual independent 1x30 two-pole multiplexers with fast reed relays offering less than 0.5ms actuation time. It supports up to 120 single-wire channels, 200V/1A switching, and uses 78-pin D-sub connectors for reliable signal connections.
Ideal for multi-channel I-V testing, the 3723 integrates seamlessly with Series 3700A and 2600A SourceMeter® instruments, supporting flexible configurations including 1x60 and 1x120 multiplexer setups.
Testwall can supply the used Keithley 3723, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 3723.
