Keithley 4200A-CVIV
| Attribute | Value |
|---|---|
| Measurement Functions | CV (Capacitance-Voltage) and IV (Current-Voltage) characterization |
| Frequency Range | 1 kHz to 10 MHz |
| Capacitance Measurement Range | 0.1 fF to 100 mF |
| DC Bias Voltage Range | -30 V to +30 V |
| AC Drive Level | 10 mV to 100 mV RMS |
| Measurement Speed | Up to 100 measurements per second |
| Interface Compatibility | Designed for use with Keithley 4200A-SCS Parameter Analyzer |
| Module Type | Combination CV and IV measurement module (plug-in unit) |
| Connector Type | Triaxial connectors for low-leakage, high-accuracy measurements |
| Applications | Semiconductor device characterization, oxide thickness measurement, doping profile analysis, MOS capacitor testing |
Keithley 4200A-CVIV Options:
- 4200A-CVIV - 4200A-CVIV-SPT - SMU Pass Thru Module for standard current resolution channel configuration
- 4200A-CVIV - 4200-PA - Remote Preamplifier Module for low current measurement capability on each channel
- 4200A-CVIV - 4200-CVU-PWR - High power C-V option supporting up to 400 V and DC currents up to 300 mA
- 4200A-CVIV - 4210-CVU - Capacitance-Voltage Unit (1 kHz – 10 MHz, 10 mV to 100 mV rms AC drive)
- 4200A-CVIV - 4215-CVU - High Resolution Capacitance-Voltage Unit (1 kHz – 10 MHz, 10 mV to 1 V rms AC drive)
- 4200A-CVIV - 4200-SMU - Medium Power Source-Measure Unit (±100 mA, ±210 V)
- 4200A-CVIV - 4201-SMU - Medium Power SMU with increased low current stability
- 4200A-CVIV - 4210-SMU - High Power Source-Measure Unit (±1 A, ±210 V)
- 4200A-CVIV - 4211-SMU - High Power SMU with increased low current stability
- 4200A-CVIV - 4200-SMU-R - Field Installable Medium Power SMU
- 4200A-CVIV - 4201-SMU-R - Field Installable Medium Power SMU with increased low current stability
- 4200A-CVIV - 4210-SMU-R - Field Installable High Power SMU
- 4200A-CVIV - 4211-SMU-R - Field Installable High Power SMU with increased low current stability
- 4200A-CVIV - 4225-PMU - Ultra-Fast Pulse Measure Unit (±40 V, ±800 mA, 200 MS/s)
- 4200A-CVIV - 4225-RPM - Remote Preamplifier/Switch Module for automatic switching between SMU, CVU and PMU
- 4200A-CVIV - 4220-PGU - High Voltage Pulse Generator Unit (±40 V, ±800 mA)
- 4200A-CVIV - 4210-MMPC - Multi-measurement Prober Cable Kit for connecting 4200A-SCS to a prober manipulator
| Model | 4200A-CVIV |
|---|

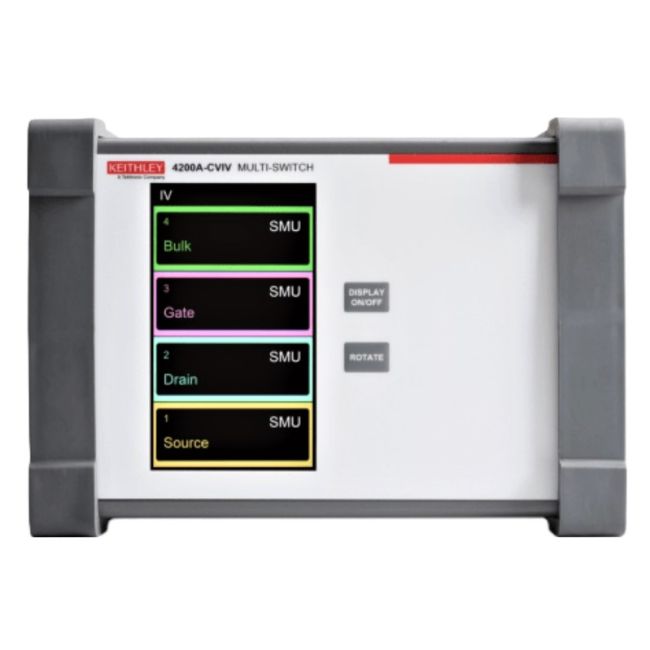

The Keithley 4200A-CVIV Multi-Switch is a high-efficiency multiplexed switching module for the 4200A-SCS, enabling seamless switching between I-V and C-V measurements without altering cables or DUT connections. It supports up to four SMUs (4200-SMU, 4201-SMU, 4210-SMU, 4211-SMU) and routes outputs from 4210-CVU or 4215-CVU to any of four output terminals.
This accessory significantly enhances device testing workflows where both I-V and C-V measurements are required, improving throughput and system flexibility in semiconductor and material analysis.
Testwall can supply the used Keithley 4200A-CVIV, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 4200A-CVIV.
