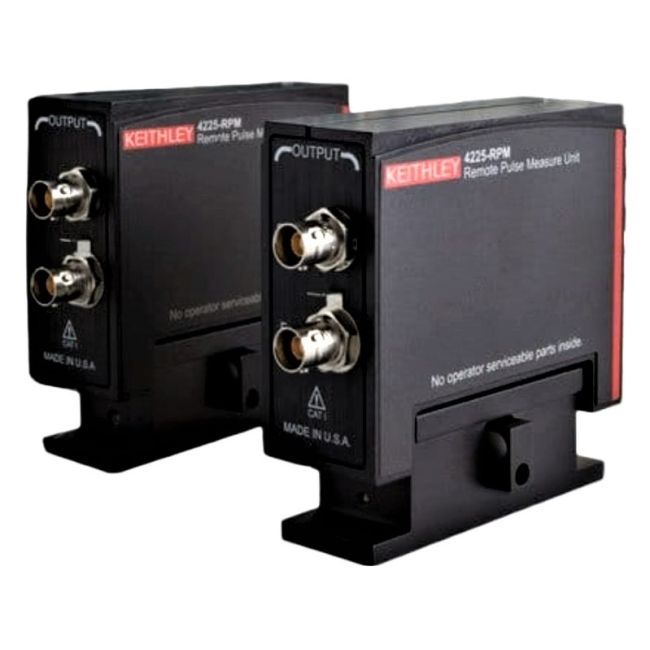

Keithley 4225-RPM
| Attribute | Value |
|---|---|
| Number of Channels | 2 per module |
| Voltage Measurement Range | ±10 V |
| Current Measurement Range | ±1 A |
| Bandwidth | Up to 2 MHz |
| Sampling Rate | 200 MS/s (per channel) |
| Timing Resolution | 5 ns |
| Compatible Mainframe | Keithley 4200A-SCS Parameter Analyzer |
| Interface/Connection | Proprietary slot-based connection within 4200A-SCS mainframe |
| Pulse Width Range | 10 ns to DC |
| Primary Application | High-speed pulsed I-V and transient measurements for semiconductor device characterization |
Keithley 4225-RPM Options:
- 4225-RPM - 4200-BTI-A - Hardware and software ultra-fast package for complete NBTI/PBTI reliability testing
- 4225-RPM - 4200-PMU-PROBER-KIT - General Purpose Cable/Connector Kit. For connecting the 4225-PMU to most triax and coax probe stations. One kit required per 4225-PMU module.
- 4225-RPM - 4210-MMPC-C - Multi Measurement Performance Cables for Cascade. One kit required per manipulator.
- 4225-RPM - 4210-MMPC-S - Multi Measurement Performance Cables for Suss. One kit required per manipulator.
- 4225-RPM - ACS V4.2 - Automated Characterization Suite software for reliability testing, general characterization, and lab automation
| Model | 4225-RPM |
|---|
The Keithley 4225-RPM enhances the 4200A-SCS Parameter Analyzer by enabling rapid, automatic switching between I-V and C-V measurements without re-cabling. It includes four-channel display for localized test setup and quick troubleshooting, plus real-time parameter extraction, data graphing, and arithmetic functions for superior semiconductor characterization.
Preloaded with multilingual measurement tutorials and customizable tests, it supports advanced material and process analysis. It is user-configurable for low current capability and allows output channel naming and real-time status viewing.
Testwall can supply the used Keithley 4225-RPM, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 4225-RPM.
