Keithley 6517B
| Attribute | Value |
|---|---|
| Voltage Measurement Range | 200 mV to 200 V |
| Current Measurement Range | 20 fA to 20 mA |
| Resistance Measurement Range | Up to 10 PΩ (10 × 10¹⁵ Ω) |
| Built-in Voltage Source | ±1000 V with 200 μV resolution |
| Charge Measurement Range | 20 nC to 2 μC |
| Input Impedance | Greater than 200 TΩ |
| Current Measurement Accuracy | 1% basic accuracy for low-current measurements |
| Interface/Connectivity | IEEE-488 (GPIB) and RS-232 interfaces |
| Display | 5-digit resolution front panel display |
| Operating Temperature Range | 0°C to 50°C (32°F to 122°F) |
Keithley 6517B Options:
- 6517B - 3Y-EW - 1-year factory warranty extended to 3 years from date of shipment
- C/6517B - 3Y-ISO - 3 (ISO-17025 accredited) calibrations within 3 years of purchase
| Model | 6517B |
|---|

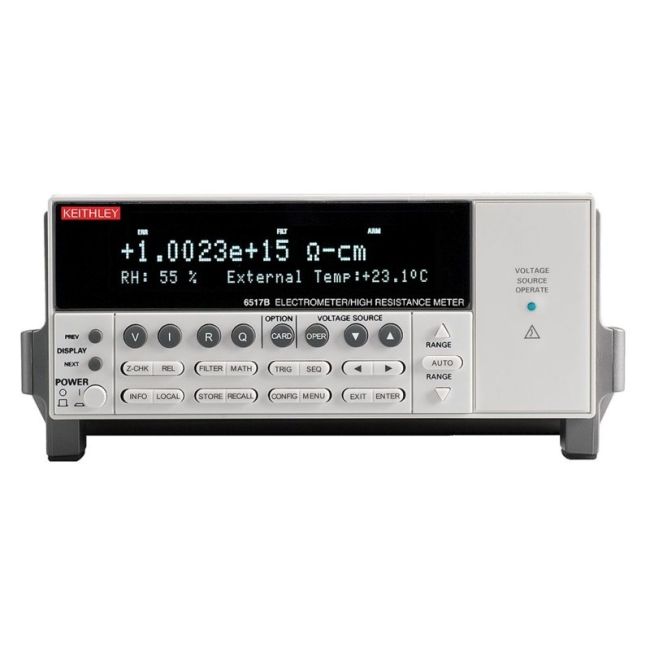

The Keithley 6517B Electrometer / High Resistance Meter features 5½-digit resolution with ultra-sensitive measurements from 1fA to 20mA, 10μV to 200V, and resistances up to 10^16Ω. It includes a built-in ±1kV voltage source with sweep capability and a 200TΩ input impedance for precision in low current, high impedance environments.
Ideal for physics, optics, nanotechnology, and materials science, it supports autoranging, fast readings (up to 425/sec), and features a 50,000-point memory buffer. The 6517B simplifies resistivity testing of insulating materials.
Testwall can supply the used Keithley 6517B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 6517B.
