Keithley

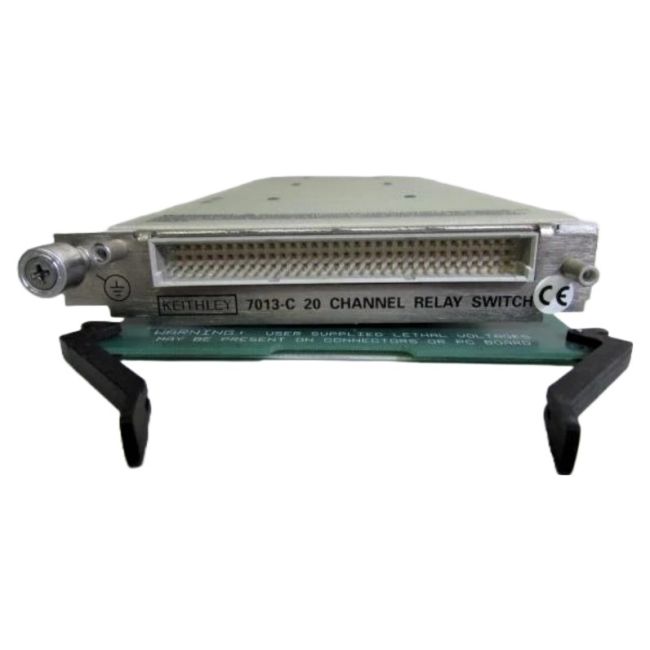

Keithley 7013-C
Isolated Relay Switch, 20 Ch.
40 Number of Channels
Relay Matrix Card Card Type
4 × 10 Matrix Configuration
Keithley 707A, 708A Compatible Mainframe
Electromechanical Reed Relays Switch Type
| Attribute | Value |
|---|---|
| Number of Channels | 40 |
| Card Type | Relay Matrix Card |
| Matrix Configuration | 4 × 10 |
| Compatible Mainframe | Keithley 707A, 708A |
| Switch Type | Electromechanical Reed Relays |
| Maximum Voltage | 110 V DC or Peak AC |
| Maximum Current | 1 A |
| Maximum Power | 10 W per relay |
| Contact Resistance (Initial) | Less than 1 Ω |
| Insulation Resistance | Greater than 10⁹ Ω |
Keithley 7013-C Options:
- 7013-C - 3Y-EW - 1-year factory warranty extended to 3 years from date of shipment
| Model | 7013-C |
|---|
The Keithley 7013-C is a compact, dual-bank multiplexer card featuring a dual 1x5 4-pole configuration, ideal for low-channel-count precision switching. It comes equipped with screw terminals for simplified wire access and is optimized for low-frequency and DC applications.
Its ability to switch multipoint signals efficiently makes it an excellent choice for automated test setups. Seamless integration with Keithley 7001/7002 mainframes ensures ease of deployment.
Testwall can supply the used Keithley 7013-C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 7013-C.
