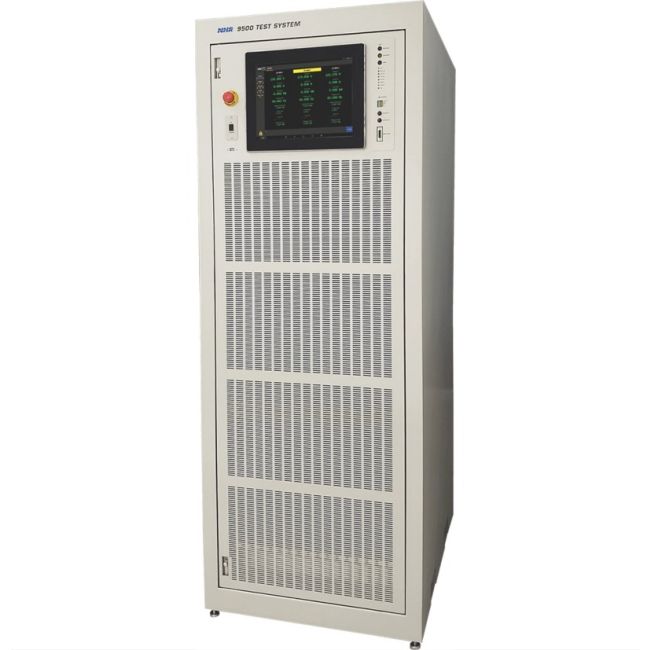

NH Research 9510-50
| Attribute | Value |
|---|---|
| Output Power | 5000W (5kW) |
| Output Voltage Range | 0 – 500V DC |
| Output Current Range | 0 – 50A |
| Input Voltage | 208V AC, 3-Phase |
| Operating Mode | Regenerative AC Load / DC Load |
| Efficiency | Up to 90% (energy returned to AC grid) |
| Communication Interface | GPIB, RS-232, USB, Ethernet (LAN) |
| Form Factor | Rack Mount, 3U |
| Cooling Method | Forced Air Cooling |
| Operating Temperature | 0°C to 40°C |
| Model | 9510-50 |
|---|
The NH Research 9510-50 Regenerative Grid Simulator delivers advanced testing for high-power grid-tied applications with compliance to global standards. It supports PHIL applications with its built-in power amplifier, offering programmable frequency from 30Hz to 120Hz and flexible AC, DC, or AC+DC outputs in single, split, or 3-Phase modes. This ensures unmatched versatility for grid-connected product validation.
The 9510-50 simulates disturbances like LVRT patterns through macros and user-defined wave shapes, enabling replication of transient anomalies, harmonics, and voltage irregularities. It also functions as a Power Analyzer, delivering detailed measurements including W, VARS, VA, CF, and PF, with waveform capture via its 125kSample/second digitizer.
Testwall can supply the used NH Research 9510-50, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the NH Research 9510-50.
