Keithley 7709
Matrix Module, 6 Row x 8 Column
6x16 Matrix with 4 Analog Buses Configuration
96 Two-Wire Channels (48 Four-Wire Channels) Number of Channels
300 V DC or RMS Maximum Voltage
1 A Switched, 2 A Carry Maximum Current
Less than 1 Ohm Initial Contact Resistance
| Attribute | Value |
|---|---|
| Configuration | 6x16 Matrix with 4 Analog Buses |
| Number of Channels | 96 Two-Wire Channels (48 Four-Wire Channels) |
| Maximum Voltage | 300 V DC or RMS |
| Maximum Current | 1 A Switched, 2 A Carry |
| Contact Resistance | Less than 1 Ohm Initial |
| Insulation Resistance | Greater than 10^9 Ohms at 500 VDC |
| Maximum Power per Channel | 60 VA |
| Relay Type | Electromechanical Reed Relays |
| Compatible Mainframe | Keithley 3706A System Switch and Multimeter |
| Bandwidth | Up to 1 MHz |
Keithley 7709 Options:
- 7709 - 3Y-EW - 1-year factory warranty extended to 3 years from date of shipment
| Model | 7709 |
|---|

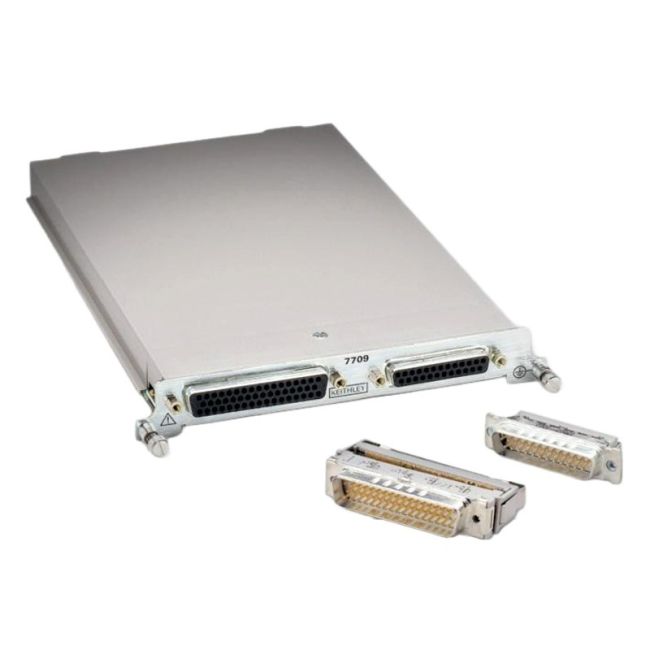

The Keithley 7709 is a 6×8 matrix module designed for advanced switching systems, offering two-pole configuration with six differential instrumentation channels to eight device-under-test channels. It supports AC/DC sources, meters, oscilloscopes, with 300 V, 1 A capacity.
It features automatic two-/four-wire DMM connections, onboard memory for relay closures, and expandable matrix configurations through cascading or daisy-chaining modules.
Testwall can supply the used Keithley 7709, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 7709.
