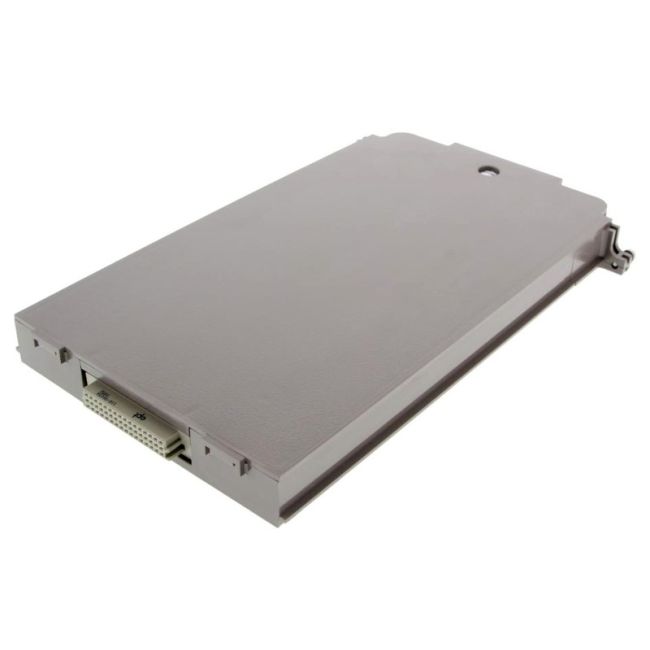

Keithley 7751
| Attribute | Value |
|---|---|
| Module Type | Switch/Control Module |
| Compatible Mainframe | Keithley 7700 Series (Model 2700, 2701, 2750) |
| Number of Channels | 20 two-wire multiplexer channels (configurable as 10 four-wire channels) |
| Relay Type | Reed relays |
| Maximum Voltage | 300 V DC or AC RMS |
| Maximum Current | 1 A per channel |
| Maximum Power | 60 W per channel |
| Frequency Range | DC to 1 MHz |
| Contact Resistance | Less than 1 Ω initial contact resistance |
| Connector Type | Screw terminal block for easy field wiring connections |
Keithley 7751 Options:
- 7751 - 3Y-EW - 1-year factory warranty extended to 3 years from date of shipment
| Model | 7751 |
|---|
The Keithley 7751 Source/Switch Module is engineered for use with the Keithley 2790 SourceMeter Switch System, offering programmable DC voltage from 50–500V and current from 0–50mA. Integrated with a current-to-voltage converter and four two-pole relay banks, it is ideal for automotive airbag inflator testing, insulation resistance, and conductor continuity assessments.
This module supports parallel testing and includes safety features such as low energy sources, interlock, and programmable shunts to prevent accidental detonations.
Testwall can supply the used Keithley 7751, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 7751.
