Kepco
Kepco BOP100-4DL
+-100V 4A Bipolar DC Power Supply
0 to ±100 VDC Output Voltage Range
0 to ±4 A Output Current Range
400 W Output Power
Two-quadrant or Four-quadrant (bipolar) operation as voltage or current source Operating Mode
SCPI-compatible, RS-232 and GPIB (IEEE-488.2) standard; LAN (LXI) optional Programming Interface
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to ±100 VDC |
| Output Current Range | 0 to ±4 A |
| Output Power | 400 W |
| Operating Mode | Two-quadrant or Four-quadrant (bipolar) operation as voltage or current source |
| Programming Interface | SCPI-compatible, RS-232 and GPIB (IEEE-488.2) standard; LAN (LXI) optional |
| Voltage Regulation (Load) | 0.01% of full scale output |
| Current Regulation (Load) | 0.01% of full scale output |
| Output Ripple & Noise (Voltage) | 5 mV RMS typical |
| AC Input Requirements | 105–132 VAC or 210–264 VAC, 47–63 Hz, single phase |
| Form Factor / Dimensions | Rack-mountable, 3U half-rack enclosure |
| Model | BOP100-4DL |
|---|

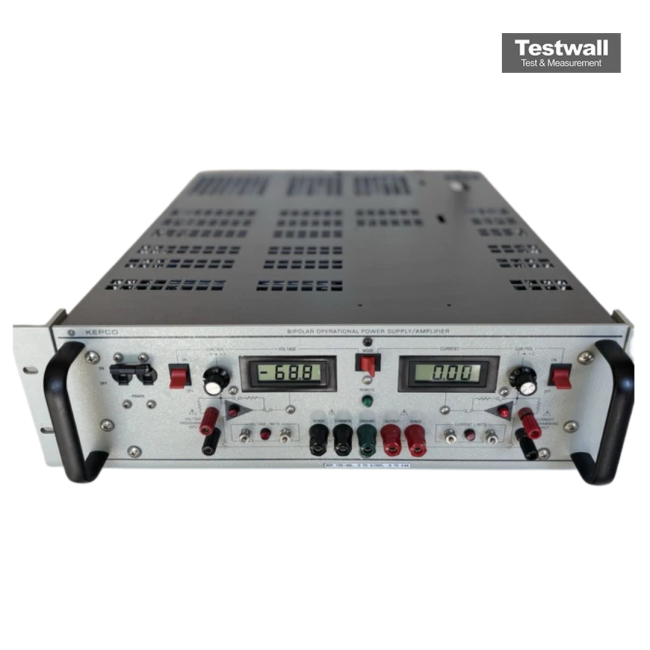

The Kepco BOP100-4DL is a ±100V, 4A bipolar DC power supply designed for precision applications requiring fast, programmable voltage and current control. It operates in both constant voltage and constant current modes, providing highly stable and responsive output performance.
Ideal for laboratory and industrial settings, this unit supports dynamic load changes and allows seamless integration into automated test systems, making it versatile and dependable.
Testwall can supply the used Kepco BOP100-4DL, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Kepco BOP100-4DL.
