Keysight (Agilent) RP7984A
| Attribute | Value |
|---|---|
| Product Family | RP7900 Series Regenerative Power System |
| Module Type | Regenerative Power Module |
| Maximum Power Rating | 984 W |
| Input Voltage Range | Up to 200 V DC |
| Maximum Current | Up to 10 A |
| Energy Recovery | Regenerates energy back to AC mains, reducing overall energy consumption |
| Interface/Connectivity | Compatible with RP7900 Series mainframe chassis |
| Measurement Functions | Voltage, current, and power measurement capabilities |
| Operating Temperature | 0°C to 55°C |
| Form Factor | Plug-in module for RP7900 Series mainframe |
Keysight (Agilent) RP7984A Options:
- RP7984A - UK6 - Commercial calibration with test results data
| Model | RP7984A |
|---|

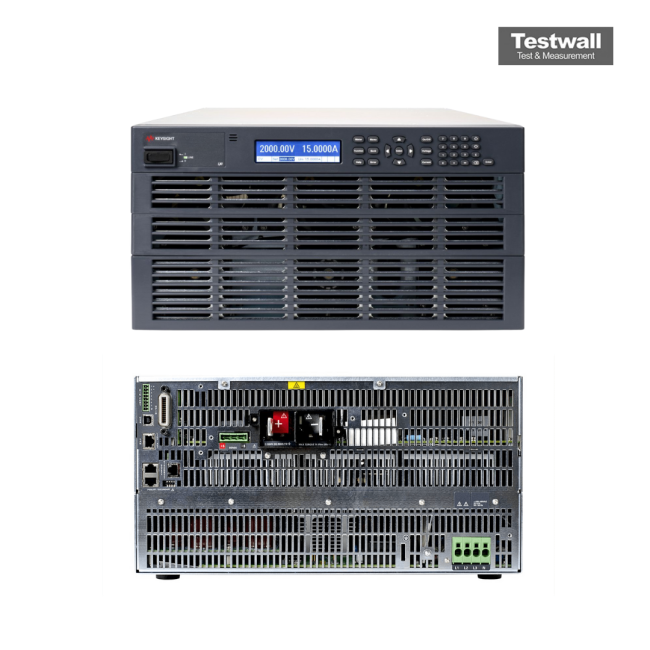

KEYSIGHT RP7984A Regenerative DC Power Supply
The Keysight RP7984A a bi-directional, regenerative DC power supply designed for testing high-voltage, high-power solutions in the Hybrid-Electric/Electric Vehicle (HEV/EV) market. With a compact 5U-high package, the RP7984A delivers up to 2000 V, 30 A, 30 kW. It operates in two-quadrant mode, serving as both a power source and regenerative electronic load. The regenerative capability allows energy to be cleanly returned to the grid, reducing costs associated with energy consumption and cooling.
The RP7984A features fast output speed, sub-millisecond command processing time, and the ability to create up to 600 kW power or loading through parallel connection. Additionally, it offers advanced measurement capabilities, battery emulation, and the ability to simulate power transients for comprehensive testing. The RP7984A supports paralleling with up to 20 units, providing flexibility and scalability in test setups. Standard interfaces include GPIB, Ethernet/LAN, and USB 2.0, making it versatile and easily controllable. Overall, the RP7984A is a powerful and efficient tool for accelerating test throughput and optimizing inverter MPPT algorithms in the evolving field of electric vehicle technology.
Specifications for the KEYSIGHT RP7984A Regenerative DC Power Supply Include:
| Voltage | 1500 V |
| Current | 60 A |
| Total Power | 30 kW |
| Voltage Accuracy | 0.03% + 100 mV |
