Kepco BOP20-5D
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to ±20V |
| Output Current Range | 0 to ±5A |
| Output Power | 100W |
| Operating Mode | Two-quadrant (Bipolar) Voltage and Current Source |
| Programming Interface | Analog (±10V reference) and GPIB (IEEE 488.2) |
| Output Voltage Ripple & Noise | Less than 3mV RMS |
| Output Current Ripple & Noise | Less than 1.5mA RMS |
| Load Regulation | Voltage: 0.01% + 2mV; Current: 0.01% + 1mA |
| Input Power Requirements | 105–125V AC / 210–250V AC, 47–63Hz, Single Phase |
| Operating Temperature Range | 0°C to 50°C |
Kepco BOP20-5D Options:
- BOP20-5D - M - Analog Meters
- BOP20-5D - D - Digital Meters
- BOP20-5D - L - Inductive load optimization
- BOP20-5D - C - Capacitive load optimization
| Model | BOP20-5D |
|---|

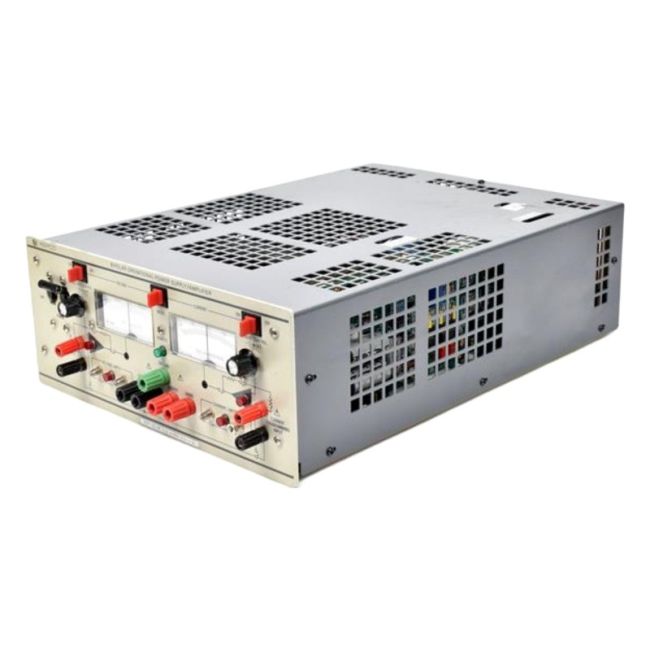

KEPCO BOP20-5D
The Kepco BOP20-5D, while a fully rated power supply (20V, 5A), is also a high-powered operational amplifier with full 4-quadrant, bipolar operation. The output is capable of both sustained d-c and the replication of arbitrary a-c waveforms.
In Kepco's BOP, the voltage and cur outputs can be controlled smoothly and linearly through the entire rated plus and minus ranges, passing smoothly through zero with no polarity switching.
BOP are high speed power operational amplifiers that can be used to provide dynamically agile voltage for test and simulation. They are not general purpose power supplies. By the nature of the bipolar high speed design, they do not have any energy-storage noise discriminating output capacitors. To realize the full high speed potential of BOP, the load characteristics should be mainly resistive. If the load is capacitive, (>0.1 microfarad), the BOPmust be slowed to avoid oscillation. This is accomplished in voltage mode by increasing the
value of the feedback capacitance. Special terminals on the user port are available to slow the BOP for optimum current-mode stability into inductive loading.
Features of the Kepco BOP20-5D include:
- Source and sink 100% of their cur rating.
- Separate control circuits for voltage and cur with automatic crossover to cur and voltage limits.
- All controls and flag signals accessible through a 50-terminal userport at the rear.
- Zeroable preamplifier available for scaling and summing external signals.
