Kepco BOP72-5M
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to ±72 VDC |
| Output Current Range | 0 to ±5 A |
| Output Power | 360 W |
| Operating Mode | Two-quadrant (voltage and current, bipolar output) |
| Programming Interface | Analog programming via rear panel; compatible with GPIB/IEEE-488 with optional interface |
| Load Regulation (Voltage) | 0.01% of full scale |
| Ripple and Noise (Voltage) | 2 mV RMS typical |
| Input Voltage | 105–125 VAC / 210–250 VAC, 47–63 Hz, single phase |
| Operating Temperature | 0°C to 50°C |
| Dimensions (H x W x D) | 3.5 in x 19 in x 20.5 in (2U rack mount) |
| Model | BOP72-5M |
|---|

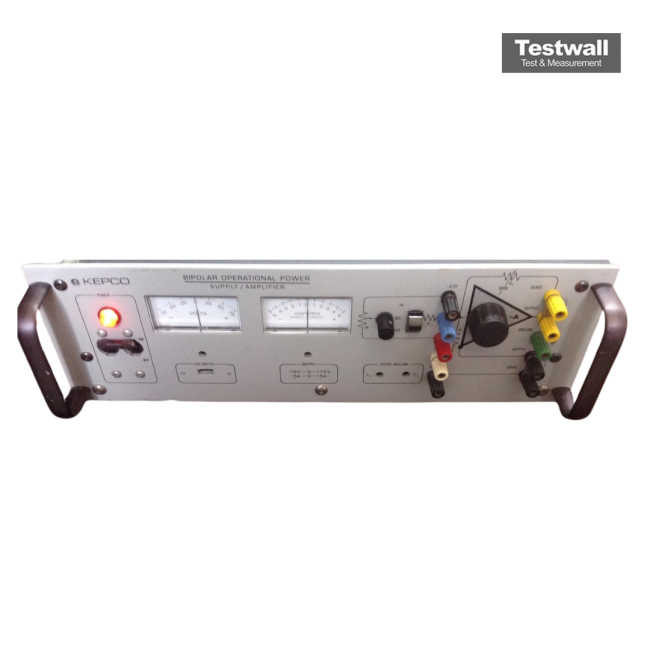

The Kepco BOP72-5M is a high-performance bipolar DC power supply and amplifier, delivering precise voltage up to 72V and current up to 5A. Designed for four-quadrant operation, it can source and sink both voltage and current, making it ideal for dynamic testing applications. This power supply features fast response times and analog programmability, suitable for both manual and automated systems.
Widely used in research, laboratory, and industrial environments, the BOP72-5M is particularly effective for applications requiring accurate control and rapid transitions between sourcing and sinking modes.
Testwall can supply the used Kepco BOP72-5M, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Kepco BOP72-5M.
