Keysight (Agilent)
Keysight (Agilent) 11667C
Power Splitter, DC to 50 GHz
DC to 18 GHz Frequency Range
2-way 0° power divider/splitter Power Split Ratio
50 Ohm Impedance
SMA (f) connectors Connector Type
≤ 1.0 dB (DC to 18 GHz) Insertion Loss
| Attribute | Value |
|---|---|
| Frequency Range | DC to 18 GHz |
| Power Split Ratio | 2-way 0° power divider/splitter |
| Impedance | 50 Ohm |
| Connector Type | SMA (f) connectors |
| Insertion Loss | ≤ 1.0 dB (DC to 18 GHz) |
| Isolation | ≥ 20 dB (DC to 18 GHz) |
| VSWR | ≤ 1.35:1 (DC to 18 GHz) |
| Maximum Input Power | 1 W (30 dBm) |
| Operating Temperature | 0°C to +55°C |
| Number of Ports | 3 (1 input, 2 output) |
| Model | 11667C |
|---|

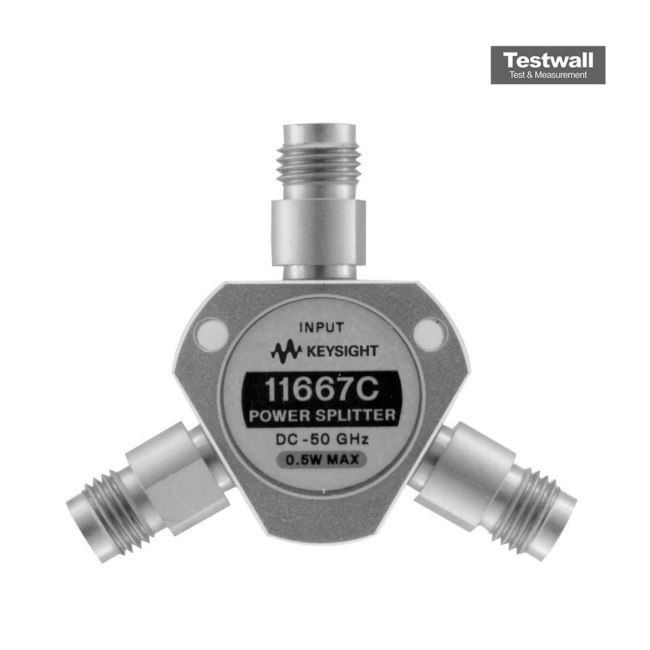

AGILENT 11667C
The Agilent 11667C power splitter is recommended when making wideband ratio measurements using an Agilent 8757 scalar network analyzer. This two-resistor type power splitter provides excellent output SWR at the auxiliary arm when used for source leveling or ratio measurement applications. The tracking between output arms over a frequency range from dc to 50 GHz allows wideband measurements to be made with a minimum of uncertainty.
Specifications of the Agilent 11667C
-
Frequency range: dc to 50 GHz
-
Equivalent output SWR: 1.65
-
Maximum input power: 0.5 W
-
Insertion loss: 8.5 dB
-
Tracking between two ports: 0.40dB
