Keysight (Agilent) 8495D
| Attribute | Value |
|---|---|
| Frequency Range | 0 to 18 GHz |
| Attenuation Range | 0 to 70 dB |
| Attenuation Step Size | 10 dB per step |
| Number of Steps | 7 |
| Maximum Input Power | 1 W (30 dBm) average |
| Impedance | 50 Ohm |
| Connector Type | APC-3.5 (SMA compatible) |
| VSWR (Maximum) | 1.7:1 |
| Control Type | Manual (Rotary Step Attenuator) |
| Operating Temperature Range | 0°C to +55°C |
Keysight Technologies 8495D Options:
- 8495D - 001 - N (f) RF connector
- 8495D - 002 - SMA (f) RF connector
- 8495D - 003 - APC-7 RF connector
| Model | 8495D |
|---|

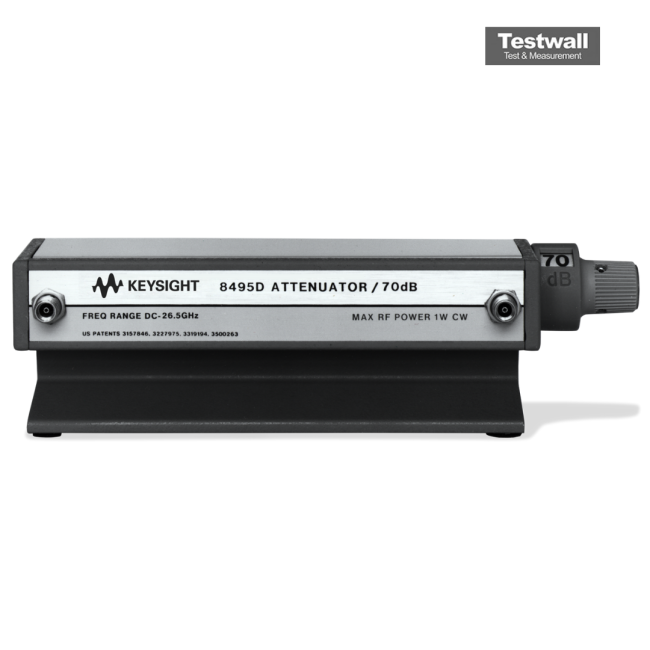

The Keysight (Agilent) 8495D is a manual step attenuator covering DC to 26.5 GHz, offering attenuation in 10 dB steps up to 70 dB. Precision gold-plated leaf springs provide exceptional durability and repeatability, supporting over 5 million cycles with a typical repeatability of 0.01 dB. It supports a maximum input power of 1 W average and 100 W peak, and features a 3.5 mm female connector.
It offers low insertion loss of 0.4 dB + 0.09 dB/GHz and maximum SWR values of 1.6 to 12.4 GHz, 1.9 to 18 GHz, and 2.2 to 26.5 GHz. NIST traceable SWR and attenuation data is available as Option 890.
Testwall can supply the used Keysight (Agilent) 8495D, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8495D.
