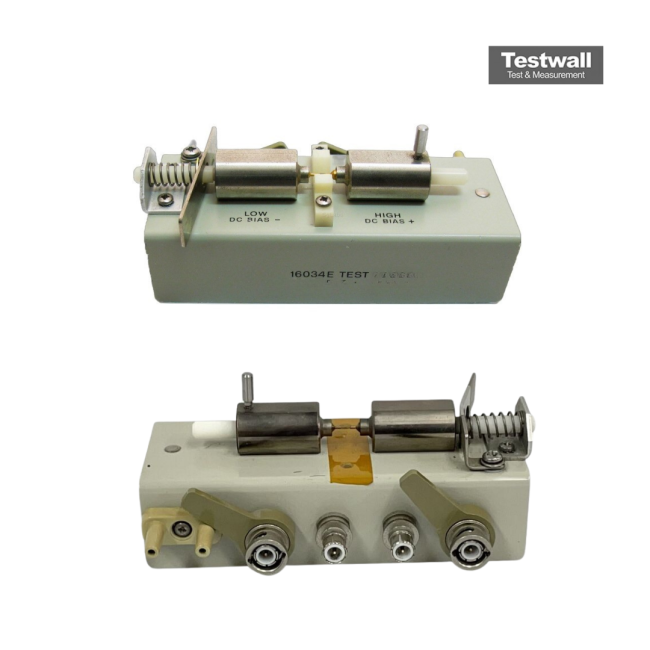

Keysight (Agilent) 16034E
| Attribute | Value |
|---|---|
| Frequency Range | DC to 30 MHz |
| Compatible Instruments | Keysight LCR Meters and Impedance Analyzers (e.g., E4980A, 4284A, 4285A) |
| Fixture Type | SMD (Surface Mount Device) Test Fixture |
| Electrode Gap | Adjustable: 0.5 mm, 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 4.0 mm |
| Component Size Range | 0402 to 1210 (Imperial), suitable for chip components |
| Connector Type | 4-Terminal Pair (4TP) BNC Connector Interface |
| Residual Inductance | Approximately 10 nH |
| Residual Resistance | Approximately 2 mΩ |
| Operating Temperature | 0°C to 55°C |
| Dimensions (W x H x D) | Approximately 85 mm x 30 mm x 130 mm |
| Model | 16034E |
|---|
The Keysight (Agilent) 16034E Test Fixture supports impedance measurements of SMD components as small as 1.6 x 0.8 mm, compatible with analyzers like 4192A, 4263B, and E4980A across DC to 40 MHz. It handles DC Bias of ±40V peak max (AC+DC), and has 4-terminal BNC connections, in a compact 128x60x71 mm form.
Ideal for precise SMD impedance evaluations, the 16034E operates between 0 to 55°C, delivering stable and accurate data in lab and test setups.
Testwall can supply the used Keysight (Agilent) 16034E, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 16034E.
