Keysight (Agilent)
Keysight (Agilent) 16034G
SMD Test Fixture
DC to 30 MHz Frequency Range
Keysight/Agilent LCR Meters and Impedance Analyzers (e.g., E4980A, 4284A, 4285A) Compatible Instruments
SMD (Surface Mount Device) Test Fixture Fixture Type
Supports chip components up to 18 mm x 18 mm Component Size Compatibility
4-Terminal Pair (Kelvin) Connection Contact Type
| Attribute | Value |
|---|---|
| Frequency Range | DC to 30 MHz |
| Compatible Instruments | Keysight/Agilent LCR Meters and Impedance Analyzers (e.g., E4980A, 4284A, 4285A) |
| Fixture Type | SMD (Surface Mount Device) Test Fixture |
| Component Size Compatibility | Supports chip components up to 18 mm x 18 mm |
| Contact Type | 4-Terminal Pair (Kelvin) Connection |
| Connector Interface | BNC Connector Interface |
| Electrode Gap | Adjustable electrode gap for various component sizes |
| Measurement Accuracy | High accuracy enabled by minimized residual impedance and stray admittance |
| Operating Temperature | 0°C to 55°C |
| Dimensions | Compact design suitable for bench-top use with standard LCR meter test heads |
| Model | 16034G |
|---|

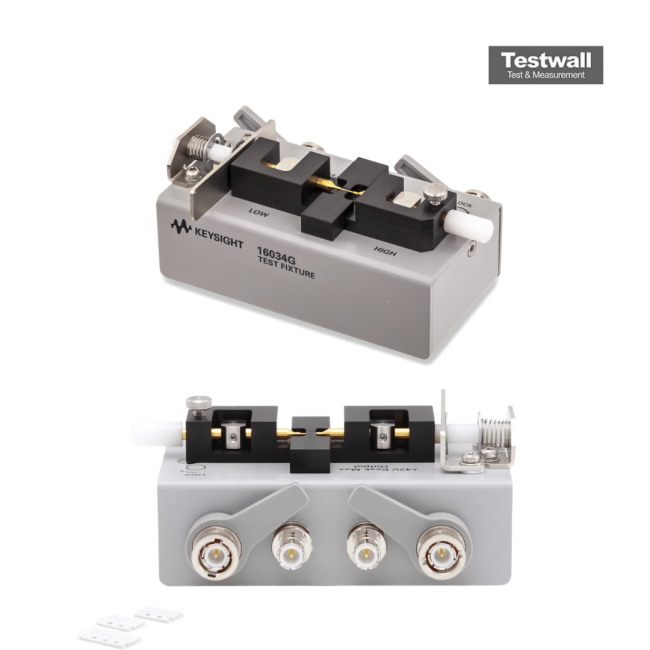

Keysight (Agilent) 16034G SMD Test Fixture
The 16034G is designed for impedance evaluations of SMD. The minimum SMD size that this fixture is adapted to evaluate is 0.6(L) x 0.3(W)[mm].
Specifications for the Keysight (Agilent) 16034G SMD Test Fixture Include:
- DUT Dimensions: (minimum applicable)0.6mm(L)x0.3mm(W)
- Measurement Instrument: 4192A, 4294A, 4263B, 4268A, 4278A, 4279A, 4284A, 4285A, E4980A
- Frequency: DC to 3 MHz (up to 110MHz with OPEN/SHORT/LOAD Compensation)
- DC Bias: -40V to +40V
- Operating Temperature: 0 to 55degC
- Terminal Connection: BNC, 4 terminal-pair
- Dimensions(approx.): 120(W) x 50(H) x 70(D)mm
