Keysight (Agilent)
Keysight (Agilent) 16089A
Kelvin Clip Lead Set
Kelvin Clip Lead Set Fixture Type
LCR Meters, Impedance Analyzers (4-terminal pair instruments) Compatible Instruments
4-Terminal Pair Number of Terminal Configuration
BNC Connectors Connector Type
4 Kelvin Clip Leads Number of Clips
| Attribute | Value |
|---|---|
| Fixture Type | Kelvin Clip Lead Set |
| Compatible Instruments | LCR Meters, Impedance Analyzers (4-terminal pair instruments) |
| Number of Terminal Configuration | 4-Terminal Pair |
| Connector Type | BNC Connectors |
| Number of Clips | 4 Kelvin Clip Leads |
| Measurement Frequency Range | DC to 2 MHz |
| Cable Length | Approximately 1 m (3.3 ft) |
| Primary Use | Component measurement of leaded components such as resistors, capacitors, and inductors |
| Compatibility | Keysight/Agilent E4980A, E4981A, 4263B, 4284A, 4285A, and other compatible LCR meters |
| Included Accessories | 4 Kelvin clip leads with BNC connectors for direct connection to instrument test ports |
| Model | 16089A |
|---|

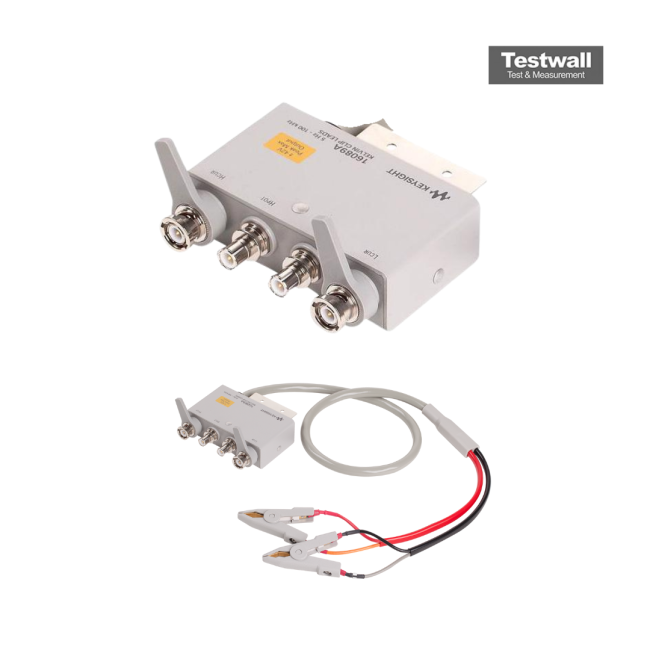

The Keysight (Agilent) 16089A Kelvin Clip Adapter enables precise impedance measurement of irregularly shaped components with two insulated Kelvin clips, compatible with various LCR meters.
Operates from 5Hz to 100kHz with a DC bias range of -42V to +42V, supporting instruments like the 4192A, 4263B, and E4980A with a 0.94m cable length and BNC, 4-terminal-pair connection.
Testwall can supply the used Keysight (Agilent) 16089A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 16089A.
