Megger SMRT46
| Attribute | Value |
|---|---|
| Number of Test Channels | 4 Current, 6 Voltage |
| Current Output per Channel | Up to 30 A continuous (92.5 A peak) |
| Voltage Output per Channel | Up to 300 V AC/DC |
| Frequency Range | 10 Hz to 3000 Hz |
| Binary Inputs | 16 optically isolated binary inputs |
| Binary Outputs | 8 relay outputs |
| GPS Synchronization | Built-in GPS receiver for time synchronization |
| Communication Interface | Ethernet (TCP/IP), USB |
| Power Supply Input | 85–264 V AC, 47–63 Hz |
| Operating Temperature Range | -10°C to +55°C (14°F to 131°F) |
Megger SMRT46 Options:
- SMRT46 - 1 - Voltage/Current Modules: 1 Module
- SMRT46 - 2 - Voltage/Current Modules: 2 Modules
- SMRT46 - 3 - Voltage/Current Modules: 3 Modules
- SMRT46 - F - Common Returns: Floating Ungrounded Common Return
- SMRT46 - G - Common Returns: Grounded Common Returns
- SMRT46 - C - Common Returns: CE Mark, Floating Common Returns
- SMRT46 - E - Common Returns: CE Mark, Grounded Common Returns
- SMRT46 - 1 (STVI) - Smart Touch View Interface: With STVI Hand-Held Controller
- SMRT46 - 0 (STVI) - Smart Touch View Interface: Without STVI
- SMRT46 - 1 (BT) - Bluetooth Option: With Bluetooth
- SMRT46 - 0 (BT) - Bluetooth Option: Without Bluetooth
- SMRT46 - S - Hardware Option: Standard Unit
- SMRT46 - T - Hardware Option: Transducer Test Enabled (requires 3 channel configuration)
- SMRT46 - 0 (SW) - Internal Software: Without Enhanced Software Options
- SMRT46 - 1 (SW) - Internal Software: IEC 61850 GOOSE Enabled
- SMRT46 - 2 (SW) - Internal Software: Reserved for Future Use
- SMRT46 - 3 (SW) - Internal Software: RTMS Enhanced Enabled (Synchronizer and Frequency test)
- SMRT46 - 4 (SW) - Internal Software: IEC 61850 GOOSE and RTMS Enhanced Enabled
- SMRT46 - 1 (TL) - Test Leads Option: With Test Leads
- SMRT46 - 0 (TL) - Test Leads Option: Without Test Leads
- SMRT46 - A - Power Cord: North American (NEMA 5-15 to IEC60320 C13, UL & CSA approved)
- SMRT46 - I - Power Cord: International Color-Coded Wires with IEC 60320 C13 Connector, CE Marked
- SMRT46 - E - Power Cord: Continental Europe CEE 7/7 Schuko Plug to IEC 60320 C13, CE Marked
- SMRT46 - U - Power Cord: United Kingdom with IEC 60320 C13 Connector and 13 Amp Fuse, CE Marked
| Model | SMRT46 |
|---|

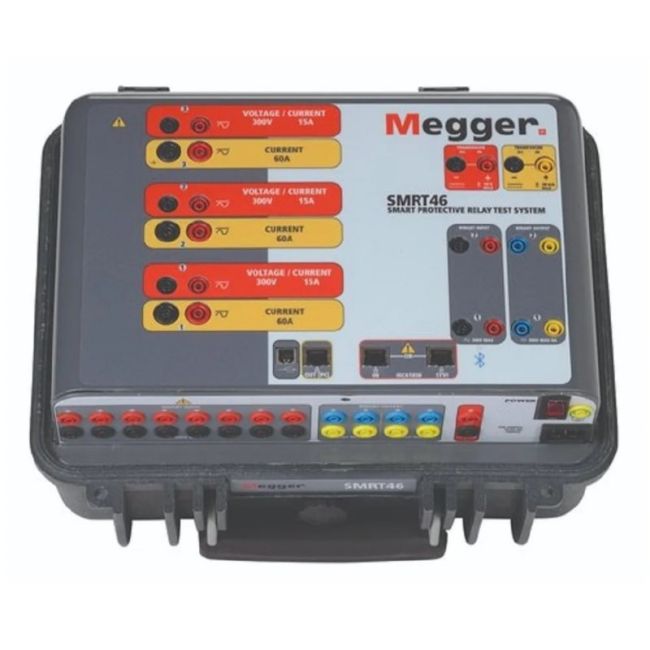

The Megger SMRT46 is a lightweight, portable relay test set designed for electro-mechanical, solid-state, and microprocessor-based relays. It provides up to 30 A at 200 VA per phase continuously, or 60 A at 300 VA for short-duty cycles. With three current amplifiers in parallel, it delivers 180 A at 900 VA for instantaneous overcurrent relay testing. The system supports up to 10 programmable inputs and 6 outputs, enabling precise real-time logic and timing operations.
It can be controlled manually via the Smart Touch View Interface™ (STVI) or automated using AVTS software. Customizable with up to 3 VIGEN modules, each voltage channel offers 0–30/150/300 V at 150 VA with automatic range switching. Its flat power curve ensures reliable performance when testing relay panels or electromechanical impedance relays.
Testwall can supply the used Megger SMRT46, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Megger SMRT46.
