Keysight (Agilent) 16451B
| Attribute | Value |
|---|---|
| Frequency Range | 20 Hz to 1 MHz |
| Measurement Function | Dielectric constant and dissipation factor measurement of solid dielectric materials |
| Electrode Configuration | Contacting electrode method (16451B supports both contacting and non-contacting electrode methods) |
| Electrode Diameter | 56 mm (main electrode), 38 mm (guarded electrode) |
| Compatible Instruments | Keysight E4980A, E4980AL, E4981A, and other LCR meters and impedance analyzers with 4-terminal pair interface |
| Specimen Thickness Range | 0.3 mm to 10 mm |
| Specimen Diameter | Minimum 60 mm diameter required for test specimen |
| Connector Interface | 4-Terminal Pair (4TP) BNC connectors |
| Operating Temperature | 0°C to 55°C |
| Standards Compliance | ASTM D150, IEC 60250 dielectric material measurement standards |
| Model | 16451B |
|---|

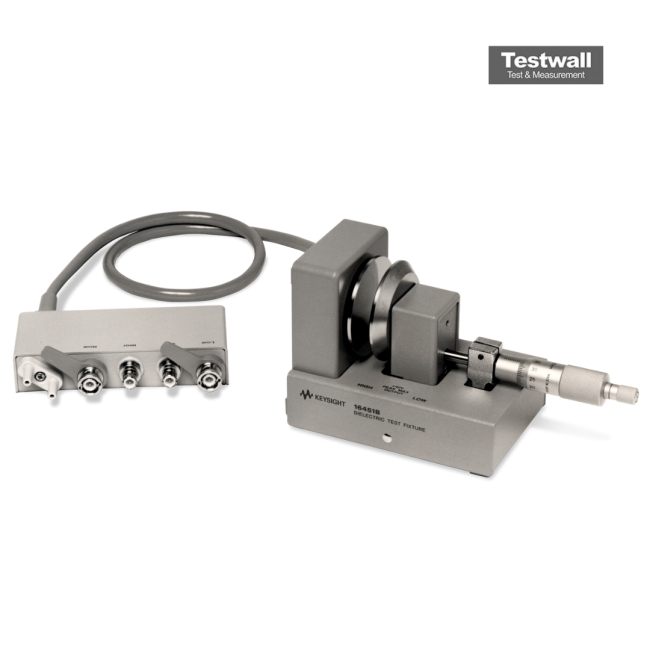

The Keysight 16451B (Agilent) Dielectric Test Fixture is designed for precise evaluation of the dielectric constant in solid materials, adhering to ASTM D150 standards. Utilizing a parallel plate method, it forms a capacitor by sandwiching the test sample between two electrodes. It works in conjunction with an LCR meter or impedance analyzer to accurately measure capacitance, providing high precision in dielectric analysis.
This fixture is ideal for laboratory and R&D environments where consistent dielectric measurements are critical, offering ease of integration with measurement equipment.
Testwall can supply the used Keysight 16451B (Agilent), fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight 16451B (Agilent).
