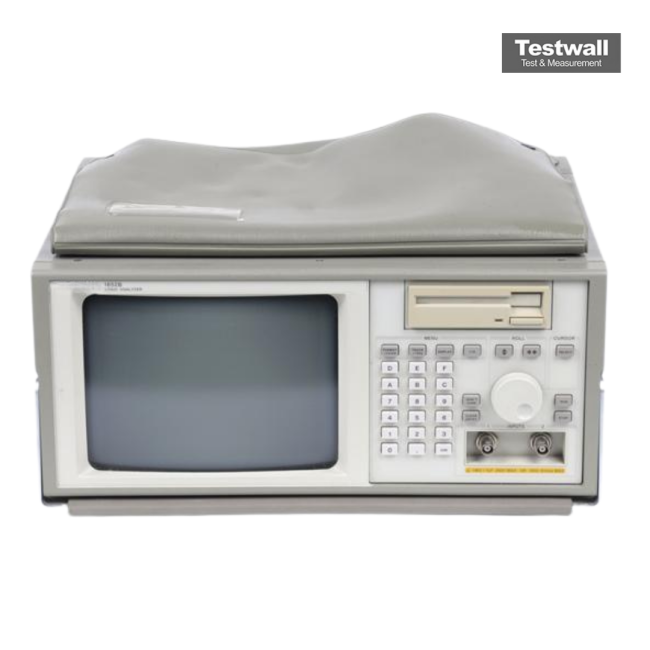

Keysight (Agilent) 1652B
| Attribute | Value |
|---|---|
| Number of Channels | 68 Channels |
| State Analysis Maximum Clock Speed | 100 MHz |
| Timing Analysis Maximum Speed | 500 MHz |
| Memory Depth (State) | 4K Samples per Channel |
| Memory Depth (Timing) | 8K Samples per Channel |
| Oscilloscope Bandwidth | 100 MHz (2-Channel Oscilloscope Included) |
| Oscilloscope Sample Rate | 250 MSa/s |
| Threshold Voltage Range | -6.0V to +6.0V, Programmable in 0.05V Steps |
| Display | Built-in CRT Display |
| Interface | HP-IB (GPIB) Interface |
| Model | 1652B |
|---|
The Keysight (Agilent) 1652B Logic Analyzer offers 80 channels with 100MHz timing and 25MHz state analysis, supporting transitional timing to extend acquisition depth. Integrated is a dual-channel 100MHz / 400MS/s oscilloscope, enabling time-correlated state, timing, and DSO measurements. Compact and versatile, it supports various 8-, 16-, and 32-bit microprocessors.
Ideal for embedded system debugging, its large display and microprocessor compatibility make it a vital tool in digital analysis and mixed-signal troubleshooting environments.
Testwall can supply the used Keysight (Agilent) 1652B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 1652B.
