Keysight (Agilent) 16760A
34 Channel 800MHz 64M Module
136 Channels Number of Channels
800 MHz Maximum State Speed
4 GHz (half channel), 2 GHz (full channel) Maximum Timing Speed
64 Mb per channel Memory Depth
Keysight 16700 Series Logic Analysis Systems Compatible Logic Analyzer Mainframe
| Attribute | Value |
|---|---|
| Number of Channels | 136 Channels |
| Maximum State Speed | 800 MHz |
| Maximum Timing Speed | 4 GHz (half channel), 2 GHz (full channel) |
| Memory Depth | 64 Mb per channel |
| Compatible Logic Analyzer Mainframe | Keysight 16700 Series Logic Analysis Systems |
| Threshold Voltage Range | -6.0 V to +6.0 V, adjustable in 50 mV increments |
| Setup/Hold Time | Adjustable in 100 ps increments |
| Module Type | Logic Analyzer Module (State and Timing) |
| Probe Connectors | 17 connectors (16 data + 1 clock per pod) |
| Operating Temperature | 0°C to 55°C |
| Model | 16760A |
|---|

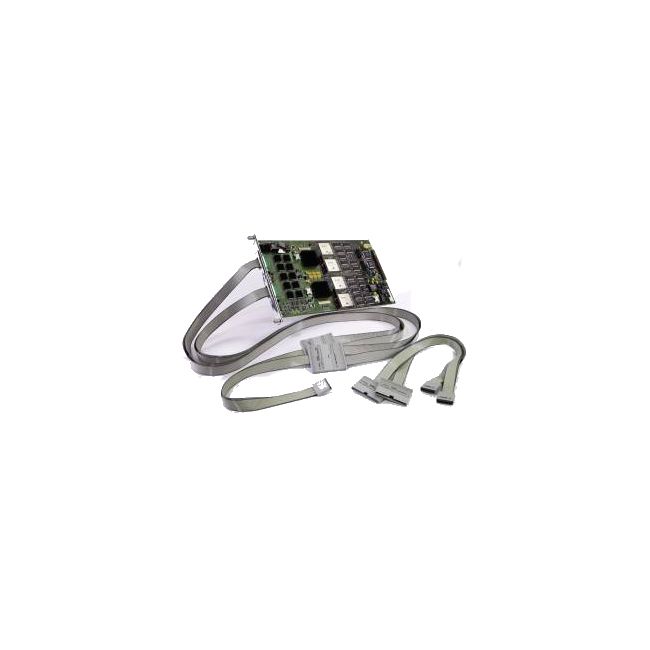

The Keysight (Agilent) 16760A is a 34-channel logic analyzer module offering 800 MHz timing performance with advanced state and timing capabilities. Its breakthrough eye scan feature allows simultaneous acquisition and analysis of eye diagrams across multiple channels—similar to oscilloscope visualization—without repositioning probes. Designed for high-speed parallel buses, it employs low-capacitance, high-density probing to reduce loading effects and maintain signal integrity. Differential inputs support data rates up to 1.5 Gbps, ideal for modern embedded systems.
With 64M samples of deep memory, the 16760A is built to capture and troubleshoot intricate logic activity across long test sessions and complex bus transactions.
