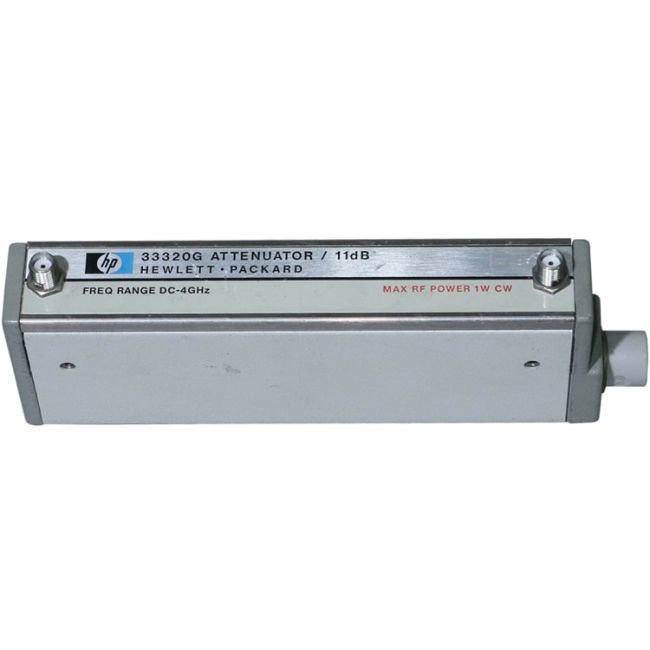

Keysight (Agilent) 33320G

Attenuator, 4 GHz, 11dB step

DC to 26.5 GHz Frequency Range

0.9 dB typical at 26.5 GHz Insertion Loss

20 ms typical Switching Speed

80 dB typical at 1 GHz, 60 dB typical at 26.5 GHz Isolation

2 W (33 dBm) average power Maximum Input Power

Request datasheet

Attribute	Value
Frequency Range	DC to 26.5 GHz
Insertion Loss	0.9 dB typical at 26.5 GHz
Switching Speed	20 ms typical
Isolation	80 dB typical at 1 GHz, 60 dB typical at 26.5 GHz
Maximum Input Power	2 W (33 dBm) average power
Impedance	50 Ohm
Connector Type	SMA (female)
Switch Configuration	SP4T (Single Pole Four Throw)
Control Voltage	+5V / -5V TTL compatible
Operating Temperature	0°C to +55°C

Keysight (Agilent) 33320G Options:

33320G - 008 - 8 inch (20.3 cm) ribbon cable with 14 pin flat pack male connector
33320G - 016 - 16 inch (40.6 cm) ribbon cable with 14 pin flat pack male connector
33320G - 011 - 5 volt solenoid operation
33320G - 890 - Calibration data: 4 GHz models: 20 frequencies

More Information
Model	33320G

The Agilent 33320G dc to 4 GHz programmable step attenuator offers exceptional repeatability and reliability. The HP 33320G is the same as the HP 8494G. Attenuation is provided in 1 dB steps from 0 to 11 dB. Precision gold-plated leaf springs ensure long-life (over 5 million cycles) and very high attenuator repeatability (typically 0.01 dB). To improve measurement accuracy, NIST traceable data (SWR and attenuation) is available as Option 890. A maximum switching time of 20 ms (including contact settling) speeds automatic testing. Custom step attenuator/switch combinations are possible. The Agilent 11716A/B/C interconnect kits provide quick connection of Agilent 8494/5/6/7 1 dB and 10 dB step attenuators in series for greater dynamic range with 1 dB steps.

Features and specifications of the Agilent HP 33320G Attenuator include:

Superior RF Performance
