Keysight (Agilent) 85027C
300 kHz to 3 GHz Frequency Range
≥ 35 dB (300 kHz to 2 GHz), ≥ 28 dB (2 GHz to 3 GHz) Directivity
Type-N (female) Connector Type
≥ 35 dB (300 kHz to 2 GHz), ≥ 28 dB (2 GHz to 3 GHz) Source Match
≥ 35 dB (300 kHz to 2 GHz), ≥ 28 dB (2 GHz to 3 GHz) Load Match
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 3 GHz |
| Directivity | ≥ 35 dB (300 kHz to 2 GHz), ≥ 28 dB (2 GHz to 3 GHz) |
| Connector Type | Type-N (female) |
| Source Match | ≥ 35 dB (300 kHz to 2 GHz), ≥ 28 dB (2 GHz to 3 GHz) |
| Load Match | ≥ 35 dB (300 kHz to 2 GHz), ≥ 28 dB (2 GHz to 3 GHz) |
| Maximum Input Power | 200 mW average, 1 W peak |
| Tracking | ± 1.0 dB (300 kHz to 3 GHz) |
| Impedance | 50 Ohm |
| Coupler Type | Directional Bridge/Coupler |
| Operating Temperature | 0°C to 55°C |
| Model | 85027C |
|---|

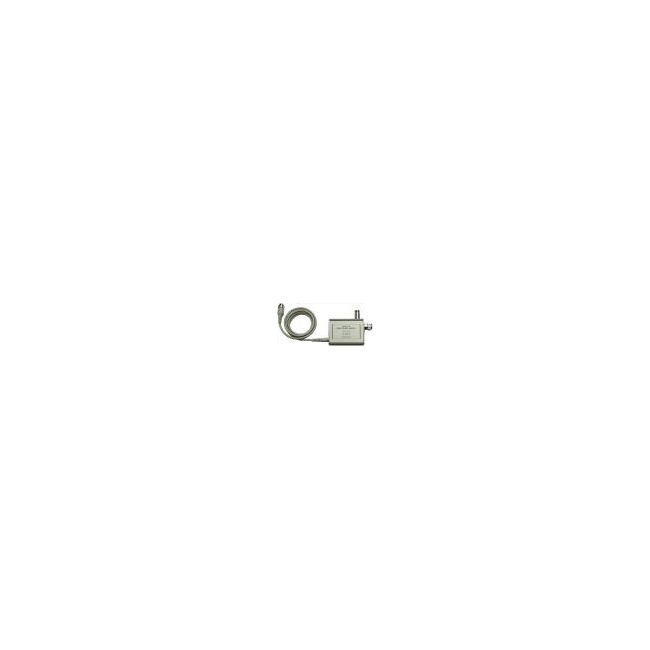

The Keysight (Agilent) 85027C directional bridge is engineered to work seamlessly with the Keysight 8757 in both AC and DC detection modes, and also supports the 8756 and 8755 in AC mode. It features high directivity, an excellent test port match, and a wide coaxial measurement range up to 18 GHz.
Ideal for precise scalar network analysis, it adapts to different signal types and delivers reliable performance in demanding RF environments.
Testwall can supply the used Keysight (Agilent) 85027C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 85027C.
