Keysight (Agilent) 34922A
| Attribute | Value |
|---|---|
| Number of Channels | 70 Channels (Two 35-Channel Multiplexer Banks) |
| Switch Type | Armature Relay Multiplexer |
| Compatible Mainframe | Keysight 34980A Multifunction Switch/Measure Mainframe |
| Maximum Voltage | 300 V (CAT I) |
| Maximum Current | 1 A per Channel |
| Relay Type | 2-Wire or 4-Wire (Selectable per Bank) |
| Maximum Switching Speed | 60 Channels per Second |
| Connector Type | Screw Terminal (Included Mass Interconnect) |
| Relay Life Expectancy | 100,000 Operations (Typical) |
| Operating Temperature Range | 0°C to 55°C |
Keysight (Agilent) 34922A Options:
- 34946A - 001 - Module ordered without switches installed, allowing installation of own N1810 series switches or use to control N1810 Series switches outside the mainframe
- 34947A - 001 - Module ordered without switches installed, allowing installation of own N1810 series switches or use to control N1810 Series switches outside the mainframe
- N1810 - 124 - Coil Voltage option: 24 VDC coil
- N1810 - 201 - DC Connector option: D subminiature 9 pin female
- N1810 - 402 - Drive option: Position indicators
| Model | 34922A |
|---|

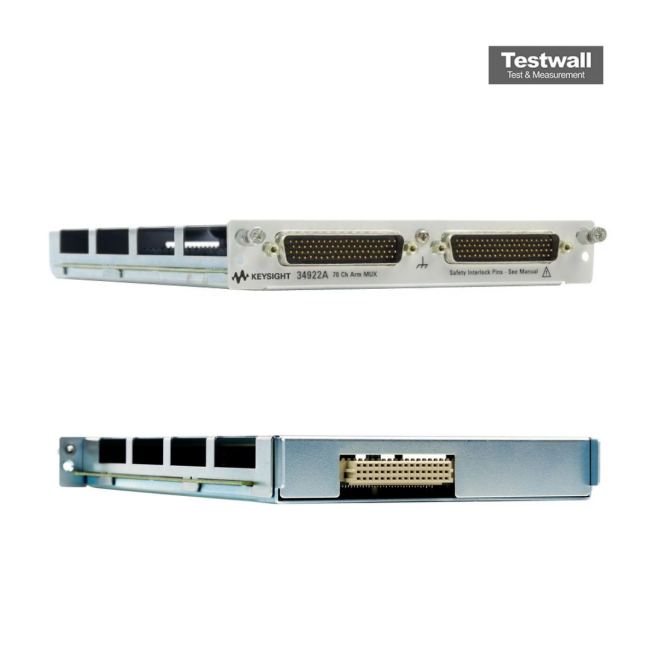

Keysight (Agilent) 34922A 70-Channel Armature for 34980A
The Keysight (Agilent) 34922A 70-Channel Armature is a high-density, high-speed plug-in module for the 34980A Multifunction Switch/Measure Unit. It provides access to 70 channels, allowing you to switch between a large number of test points on armature windings or similar components. Armature windings are coils of wire typically found in motors or generators. It supports bandwidth up to 25 MHz, enabling it to handle high frequency signals. Keysight (Agilent) 34922A 70-Channel Armature works seamlessly with the internal Digital Multimeter (DMM) of Keysight 34980A unit, enabling direct cur and voltage measurements on the connected channels.
The Keysight (Agilent) 34922A 70-Channel Armature supports connections for both 2-wire and 4-wire configurations within the same module, offering flexibility for various testing setups. It can handle voltages up to ± 300 V peak and cur up to 1A, making it suitable for a wide range of applications. The 34922A utilizes standard 78-pin Dsub connectors for compatibility with standard cables, terminal blocks, or mass interconnect solutions. The Keysight (Agilent) 34922A 70-Channel Armature offers scan rates of up to 100 channels per second, allowing for efficient data acquisition from multiple channels.
Specifications for the Keysight (Agilent) 34922A 70-Channel Armature for 34980A Include:
| Channels/configurations | 70 2-wire / 35 4-wire |
| Max volts | ± 300 V |
| Max current | 1A /2A |
| Bandwidth | 25 MHz |
