Keysight (Agilent) 34941A
| Attribute | Value |
|---|---|
| Form Factor | Plug-in Module for 34980A Multifunction Switch/Measure Unit |
| Module Type | Quad 4x1 RF Multiplexer |
| Number of Channels | 16 channels (4 banks of 4x1) |
| Frequency Range | DC to 2.5 GHz |
| Characteristic Impedance | 50 Ohm |
| Insertion Loss | 0.3 dB at 10 MHz, 1.5 dB at 1 GHz, 2.5 dB at 2.5 GHz |
| Isolation | 50 dB at 10 MHz, 30 dB at 1 GHz, 22 dB at 2.5 GHz |
| Maximum Switching Voltage | 50 V DC / 35 V AC RMS |
| Maximum Switching Current | 1 A |
| Connector Type | SMA (Female) |
| Model | 34941A |
|---|

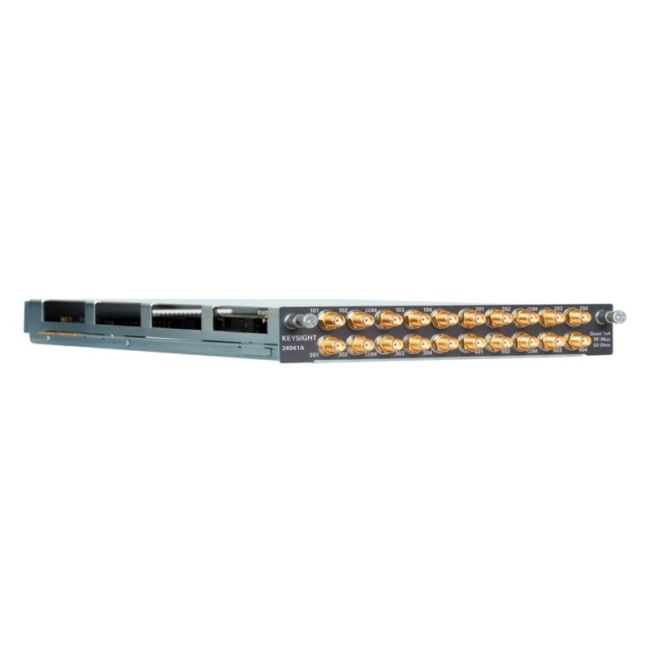

The Keysight (Agilent) 34941A RF multiplexer module for the 34980A unit provides bi-directional signal switching from DC up to 3 GHz. It includes four independent 1x4 RF multiplexers per module with high isolation to ensure accurate measurements and minimal signal interference.
This module allows cascading up to 97 RF channels in a single mainframe. It’s ideal for oscilloscope and spectrum analyzer setups, preventing ground loops and ensuring versatile, scalable switching solutions.
Testwall can supply the used Keysight (Agilent) 34941A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 34941A.
