NH Research 9410-48
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 – 60 V |
| Output Current Range | 0 – 48 A |
| Output Power | Up to 1,440 W |
| Input Voltage | 208/240 VAC, Single Phase |
| Input Frequency | 47 – 63 Hz |
| Voltage Regulation | ±0.05% of full scale |
| Current Regulation | ±0.1% of full scale |
| Programming Interface | GPIB, RS-232, Analog |
| Operating Temperature | 0°C to 50°C |
| Form Factor | Rack Mount, 3U |
NH Research 9410-48 Options:
- 9410-48 - HV - High Voltage Output (400V L-N voltage range option)
| Model | 9410-48 |
|---|

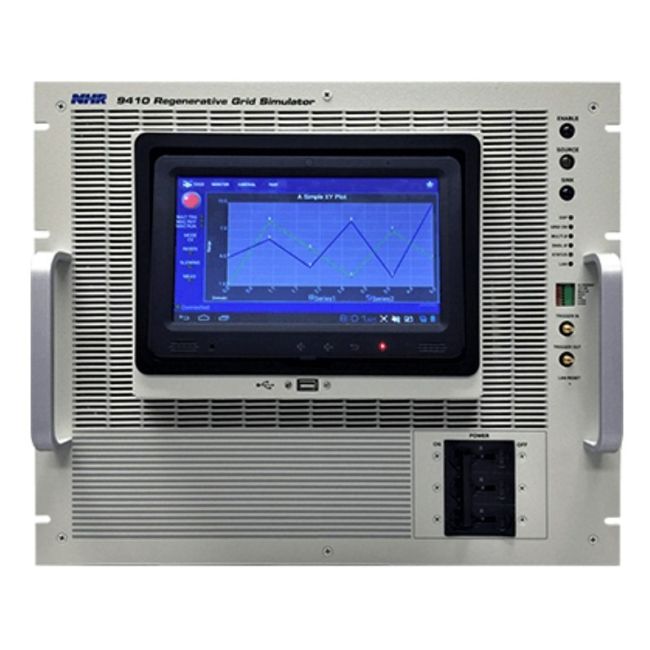

The NH Research 9410-48 Regenerative Grid Simulator delivers 48kW/96kVA with programmable 1Φ, 2Φ, or 3Φ AC outputs and up to three fully controlled output channels. Each channel supports precise control of amplitude, wave-shape, and phase, enhanced by a 125k Sample/sec digitizer for waveform analysis.
Ideal for grid-connected device testing, it simulates diverse AC conditions, supports DC output, and integrates a complete measurement system with user-defined waveforms and scalable power modules.
Testwall can supply the used NH Research 9410-48, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the NH Research 9410-48.
