Keysight (Agilent)

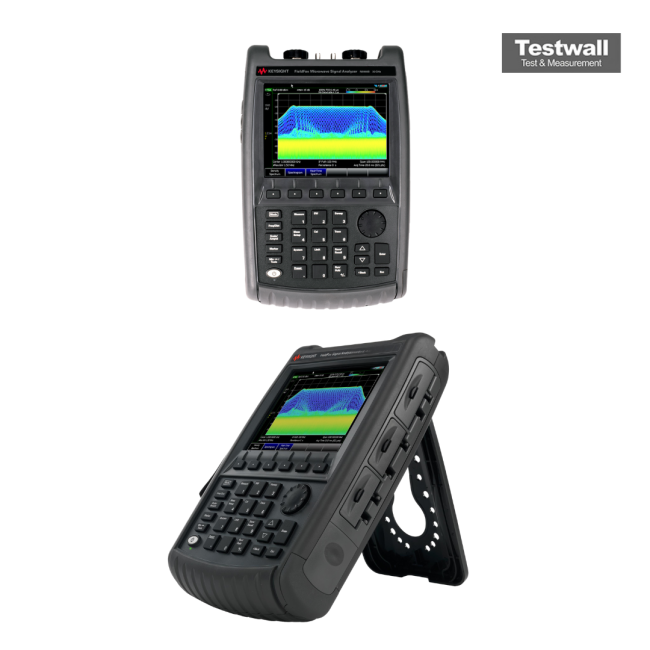

Keysight (Agilent) N9960B
32GHz Fieldfox Handheld Signal Analyzer
100 kHz to 32 GHz Frequency Range
Handheld Field Spectrum Analyzer Instrument Type
8.4-inch sunlight-readable color touchscreen display Display
Up to 108 dB Dynamic Range
-100 dBc/Hz at 10 kHz offset (at 1 GHz) Phase Noise
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 32 GHz |
| Instrument Type | Handheld Field Spectrum Analyzer |
| Display | 8.4-inch sunlight-readable color touchscreen display |
| Dynamic Range | Up to 108 dB |
| Phase Noise | -100 dBc/Hz at 10 kHz offset (at 1 GHz) |
| DANL (Displayed Average Noise Level) | -163 dBm/Hz (with preamplifier enabled) |
| Battery Life | Up to 4 hours of continuous operation with standard battery |
| Weight | Approximately 8.5 kg (18.7 lbs) |
| Operating Temperature | -10°C to +55°C |
| Connectivity | USB, LAN (Ethernet), GPS receiver support, and optional Wi-Fi |
| Model | N9960B |
|---|
Keysight (Agilent) N9960B 32GHz Fieldfox Handheld Signal Analyzer Description: Frequency Range: 9 kHz to 32 GHz Base model includes Signal Analyzer as standard Options to add Reflection measurements, Real-time spectrum analyzer, I/Q analysis etc. Lightweight, portable & battery powered Keysight (Agilent) N9960B 32GHz Fieldfox Handheld Signal Analyzer
