Keysight (Agilent)

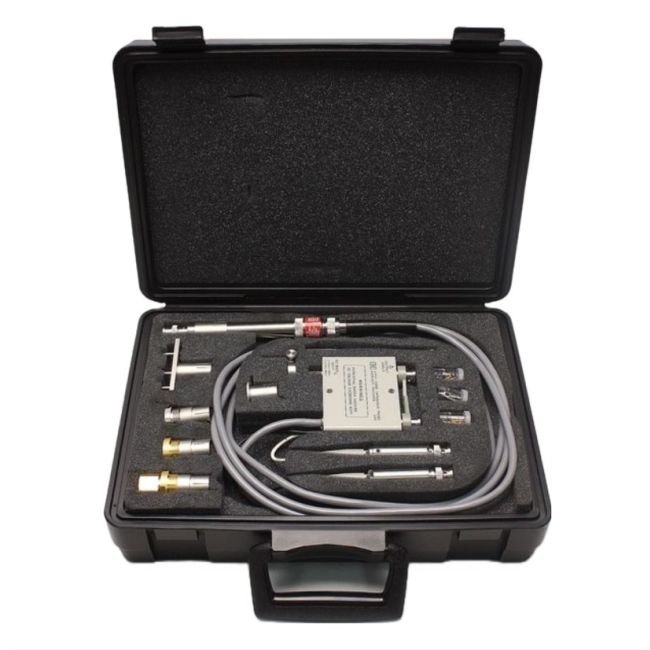

Keysight (Agilent) 41941B
Impedance Probe Kit, 3M
100 kHz to 3 GHz Frequency Range
1 mΩ to 10 MΩ Impedance Measurement Range
|Z|, |Y|, R, X, G, B, L, C, D, Q, θ Measurement Parameters
-27 dBm to 0 dBm (50 Ω source impedance) Test Signal Level
7 mm APC (precision coaxial connector) Connector Type
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 3 GHz |
| Impedance Measurement Range | 1 mΩ to 10 MΩ |
| Measurement Parameters | |Z|, |Y|, R, X, G, B, L, C, D, Q, θ |
| Test Signal Level | -27 dBm to 0 dBm (50 Ω source impedance) |
| Connector Type | 7 mm APC (precision coaxial connector) |
| Instrument Compatibility | Keysight 4195A Network/Spectrum Analyzer |
| Calibration Methods | OPEN, SHORT, LOAD (OSL calibration) |
| Measurement Mode | Reflection (one-port impedance measurement) |
| Operating Temperature | 0°C to 55°C |
| DC Bias Capability | 0 V to ±40 V DC bias voltage applicable |
Keysight (Agilent) 41941B Options:
- 41941B - 350 - 50Ω Set
- 41941B - 375 - 75Ω Set
| Model | 41941B |
|---|
The Keysight (Agilent) 41941B Impedance Probe Kit enables precise impedance evaluations up to 100 MHz when paired with the Keysight (Agilent) 4194A, eliminating errors from residual impedance and stray admittance using included calibration standards.
It supports impedance measurements across a wide 100 mΩ to 1 MΩ range with accuracy between 1.5% to 3%, and allows DC biased evaluations up to ±150V/0.5A or ±40V when used with internal sources.
Testwall can supply the usedKeysight (Agilent) 41941B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 41941B.
