Keysight (Agilent) 16194A
| Attribute | Value |
|---|---|
| Fixture Type | SMD Test Fixture |
| Compatible Instruments | Keysight LCR Meters and Impedance Analyzers (e.g., E4980A, 4284A, 4285A) |
| Frequency Range | DC to 3 GHz |
| Component Lead Spacing | 0.5 mm to 5.4 mm |
| Component Size Compatibility | 0402 to 2220 chip components |
| Connector Type | BNC (4-terminal pair) |
| Measurement Terminals | 4-Terminal Pair Configuration |
| Operating Temperature | 0°C to 55°C |
| Electrode Material | Gold-Plated Electrodes |
| Open/Short Compensation | Supported for accurate measurement calibration |
Keysight (Agilent) 16194A Options:
- 16194A - (no separate option codes listed) - Parallel electrode SMD test fixture, holds both lead devices and SMDs up to 2 GHz, furnished with two device holders
| Model | 16194A |
|---|

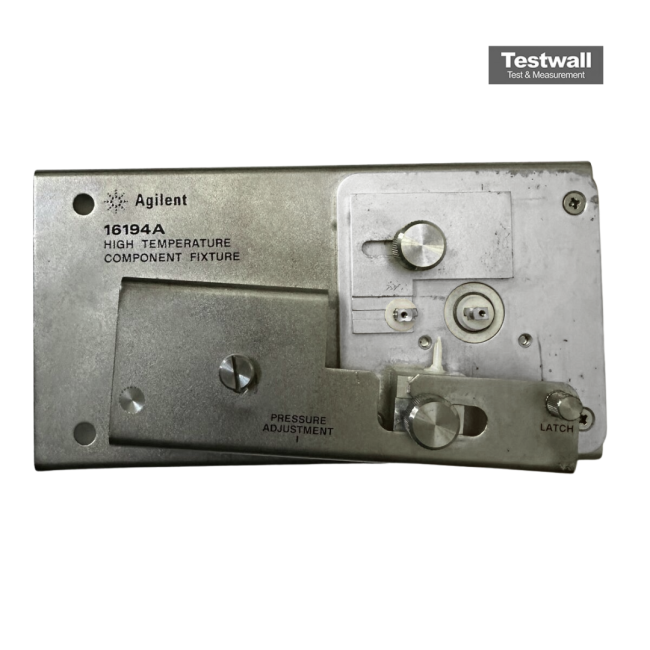

The Keysight (Agilent) 16194A High Temperature Component Test Fixture is designed for testing axial/radial leaded and surface mount devices within a broad temperature range of -55°C to +200°C. It supports a maximum DC bias voltage of ±40V and can operate in humidity levels from 15% to 95% RH when the wet bulb temperature is under 40°C. This fixture is well-suited for component testing in extreme environmental conditions, ensuring reliability and performance integrity.
Engineered for non-operating temperatures from -55°C to +200°C and humidity up to 90% RH, it ensures robust testing even in storage conditions. The 16194A is ideal for high-temperature reliability testing and validation of sensitive electronic components.
Testwall can supply the used Keysight (Agilent) 16194A High Temperature Component Test Fixture, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 16194A High Temperature Component Test Fixture.
