Keysight (Agilent) 4195A
| Attribute | Value |
|---|---|
| Frequency Range | 10 Hz to 500 MHz |
| Measurement Functions | Network Analysis, Spectrum Analysis, Impedance Analysis |
| Dynamic Range | 120 dB |
| Impedance Measurement Range | 0.1 Ω to 1 MΩ |
| Output Impedance | 50 Ω |
| Oscillator Output Level | -50 dBm to +15 dBm |
| Frequency Resolution | 1 mHz |
| Number of Measurement Points | 2 to 401 points per sweep |
| Display | Built-in CRT display with simultaneous dual-channel measurement capability |
| Interface | HP-IB (GPIB) Interface for remote control and automation |
Keysight (Agilent) 4195A Options:
- 4195A - Opt W30 - Extended repair service
- 4195A - Opt 001 - High Stability Frequency Reference (improves the stability of frequency for evaluating such high Q devices as crystal filters, oscillators, or resonators)
| Model | 4195A |
|---|

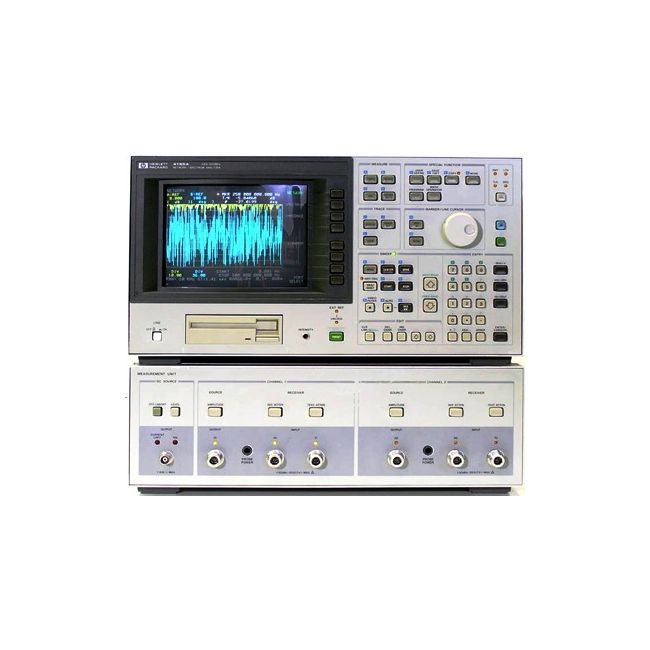

The Keysight (Agilent) 4195A Network/Spectrum Analyzer integrates vector network and spectrum measurement in one unit, ideal for analog device development and testing. It supports direct impedance measurements from 100 kHz to 500 MHz using the 41951A Impedance test kit, with advanced capabilities including high resolution, color graphics, and internal data storage.
Perfect for analyzing linear and nonlinear devices, the 4195A enables derivation of impedance parameters from S-parameters, providing accuracy and ease for analog design engineers.
Testwall can supply the used Keysight (Agilent) 4195A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 4195A.
