NH Research 9410-8
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 – 600 V DC |
| Output Current Range | 0 – 34 A |
| Output Power | 20 kW |
| Input Voltage | 480 V AC, Three-Phase |
| Input Frequency | 47 – 63 Hz |
| Regenerative Capability | Yes – Regenerative Power Return to AC Line |
| Communication Interface | IEEE-488 (GPIB) and RS-232 |
| Voltage Regulation | 0.05% of Full Scale |
| Current Regulation | 0.1% of Full Scale |
| Operating Temperature | 0°C to 40°C |
NH Research 9410-8 Options:
- 9410-8 - HV - High Voltage Output (400V L-N voltage range option)
| Model | 9410-8 |
|---|

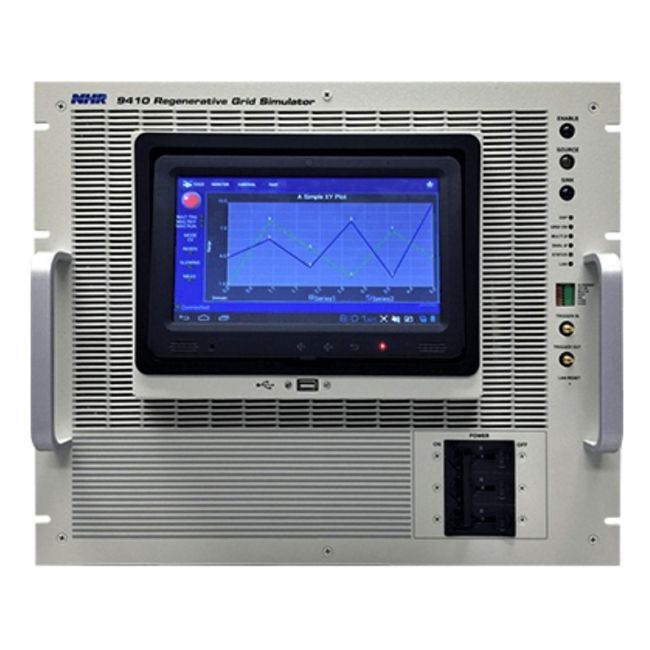

The NH Research 9410-8 Regenerative Grid Simulator delivers 8kW, 16kVA with programmable 1, 2, or 3-phase modes, supporting full 4-quadrant AC operation. It provides AC voltages up to 400 VRMS L-N and DC outputs of 200/400VDC, with a frequency range of DC to 100Hz. Each channel is independently programmable for voltage amplitude, waveform, and phase, while a high-resolution 125k Sample/sec waveform digitizer captures transients, harmonics, and disturbances. Its scalable power modules (4 kW to 96 kW) ensure flexibility in development, laboratory, and production testing.
The 9410-8 offers user-defined waveforms, high/low ranges for voltage and current, and built-in analysis tools found in power analyzers and oscilloscopes. A 9” touch interface, SCPI programming, and NI LabVIEW drivers provide efficient integration.
Testwall can supply the used NH Research 9410-8, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the NH Research 9410-8.
