Keysight (Agilent) 42941A
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz to 3 GHz |
| Impedance Measurement Range | 1 mΩ to 100 kΩ |
| Compatible Instrument | Keysight E4991A/B Impedance Analyzer |
| Probe Type | Impedance Probe Kit |
| Test Fixture Interface | 7 mm coaxial connector |
| Measurement Parameters | |Z|, |Y|, R, X, G, B, L, C, D, Q, θ |
| Cable Length | 1 m |
| Operating Temperature | 0°C to 55°C |
| Component Size Compatibility | Surface mount and leaded components |
| Calibration | OPEN, SHORT, and LOAD calibration supported |
Keysight (Agilent) 42941A Options:
- 42941A - 001 - Option 001 (3.5-mm Short and 3.5-mm Load not furnished)
- 42941A - 42941-60002 - Pin Probe (Contact Assembly)
- 42941A - 42941-60004 - Spare Pin Set (includes 3 spare pins)
- 42941A - 1250-2840 - 3.5-mm Short
- 42941A - 0955-1105 - 3.5-mm Load
- 42941A - 1250-1787 - BNC Adapter
- 42941A - 8121-0003 - Clip Lead
- 42941A - 04193-61629 - Ground Lead
- 42941A - 42941-60011 - Carrying Case
| Model | 42941A |
|---|

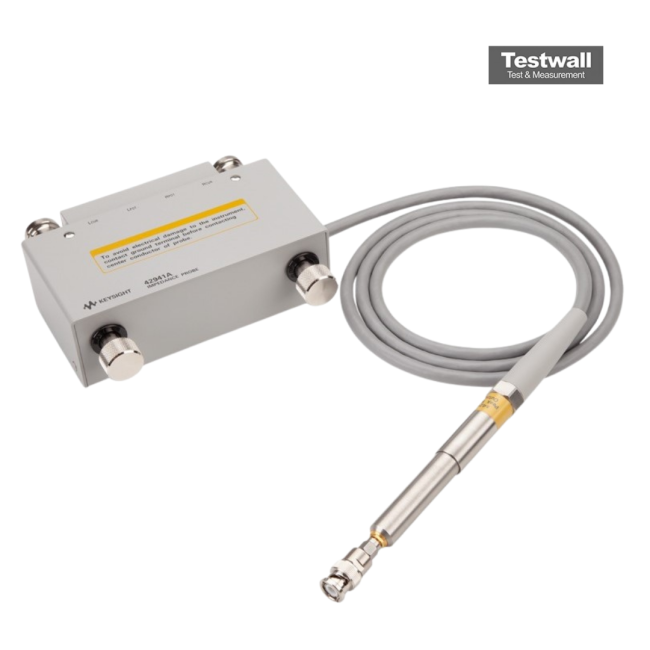

The Keysight (Agilent) 42941A Impedance Probe Kit enables in-circuit impedance measurements with a frequency range from 40 Hz to 110 MHz. It supports multiple connection methods including a standard probe, alligator clip adapter, and BNC adapter, offering flexibility for board-mounted and large components.
This kit is ideal for evaluating printed circuit patterns and input/output impedance of circuits, enhancing measurement accuracy and broadening impedance analysis capabilities.
Testwall can supply the used Keysight (Agilent) 42941A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 42941A.
