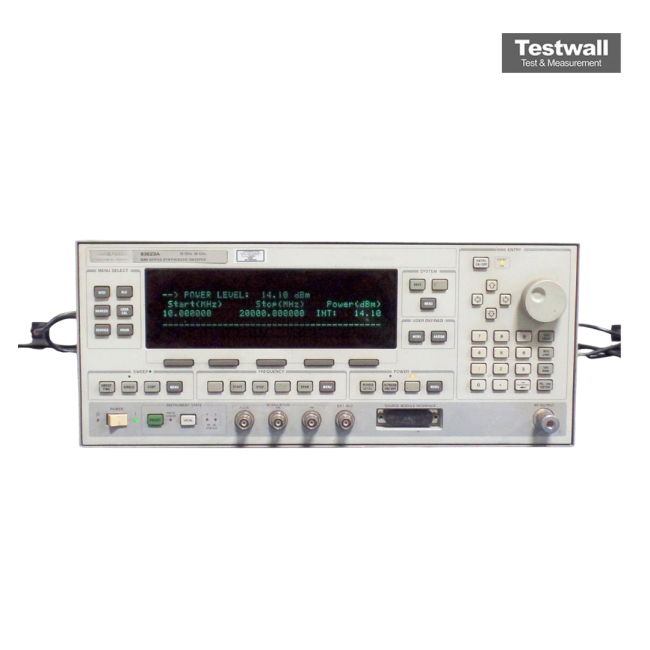

Keysight (Agilent) 83623A
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 20 GHz |
| Output Power Range | -20 dBm to +20 dBm |
| Frequency Resolution | 1 Hz |
| SSB Phase Noise | -116 dBc/Hz at 10 kHz offset (at 10 GHz) |
| Harmonic Suppression | -30 dBc typical |
| Output Connector | 2.4 mm (f) |
| Modulation Types | AM, FM, Phase, and Pulse Modulation |
| Sweep Modes | Step Sweep, List Sweep, Analog Sweep |
| Interface | GPIB (IEEE-488) |
| Power Requirements | 100–240 VAC, 50/60 Hz |
Keysight (Agilent) 83623A 10MHz-20GHz High Power Synthesised Sweeper Options:
- 83623A - 001 - Add Step Attenuator
- 83623A - 002 - Internal Modulation Source
- 83623A - 003 - Delete Front Panel Display/Keyboard
- 83623A - 004 - Rear Panel Rf Output
- 83623A - 006 - Fast Pulse Modulation
- 83623A - 008 - 1HZ Frequency Resolution
- 83623A - 700 - Mate System Compatibility
| Model | 83623A |
|---|
The Keysight (Agilent) 83623A Synthesized Sweeper operates from 10 MHz to 20 GHz, offering high output power and exceptional frequency accuracy. Utilizing indirect synthesis, it achieves 1 Hz resolution and low single-sideband phase noise. Option 006 enables pulse modulation with >80 dB on/off ratio and <10 ns rise/fall time, while Option 008 provides precise frequency control. With superior harmonic suppression and AM/FM/pulse modulation, it meets demanding test requirements.
Ideal for radar, communication, and defense testing, the 83623A supports simultaneous amplitude and pulse modulation, delivering decoupled AM/FM functions and 100 kHz modulation bandwidth. It is a powerful tool for precise signal characterization.
Testwall can supply the used Keysight (Agilent) 83623A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 83623A.
