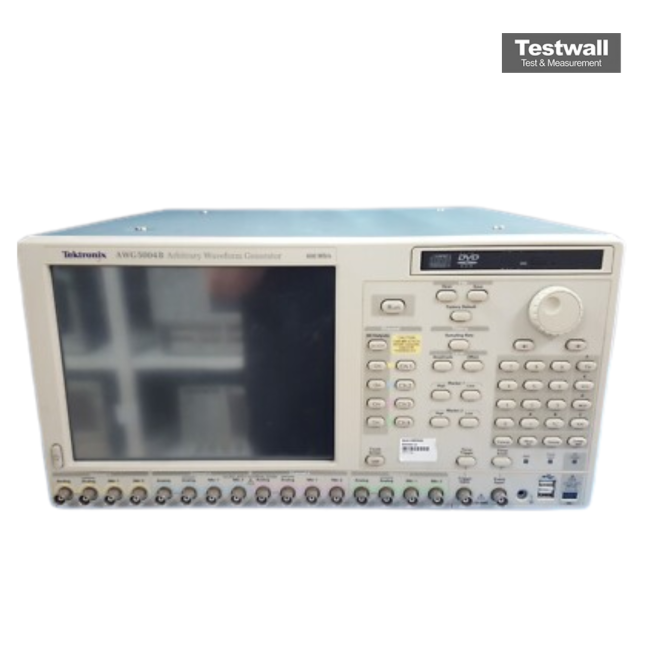

Tektronix AWG5004B
Arbitrary Waveform Generator
4 analog output channels Number of Channels
Up to 600 MS/s per channel Sample Rate
14-bit DAC resolution Vertical Resolution
240 MHz Analog Bandwidth
32 MSamples per channel (standard), expandable to 64 MSamples Waveform Memory
| Attribute | Value |
|---|---|
| Number of Channels | 4 analog output channels |
| Sample Rate | Up to 600 MS/s per channel |
| Vertical Resolution | 14-bit DAC resolution |
| Analog Bandwidth | 240 MHz |
| Waveform Memory | 32 MSamples per channel (standard), expandable to 64 MSamples |
| Output Amplitude Range | 50 mVpp to 2 Vpp into 50 Ω |
| Marker Outputs | 2 marker outputs per channel (8 total), 1.2 Vpp into 50 Ω |
| Clock Reference | Internal and external reference clock; 10 MHz reference input/output |
| Sequencing | Advanced sequencing with up to 16,383 sequence steps |
| Connectivity & Interface | GPIB, USB, and LAN (LXI Class C compliant) interfaces |
| Model | AWG5004B |
|---|
The Tektronix AWG5004B offers advanced 4-channel high-speed output with up to 16 M points per channel, supporting multi-domain testing and flexible waveform sequencing. Ideal for signal emulation in research applications.
It includes advanced waveform editing tools, USB/LAN connectivity for remote access, and enables seamless integration in complex test environments.
Testwall can supply the used Tektronix AWG5004B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AWG5004B.
