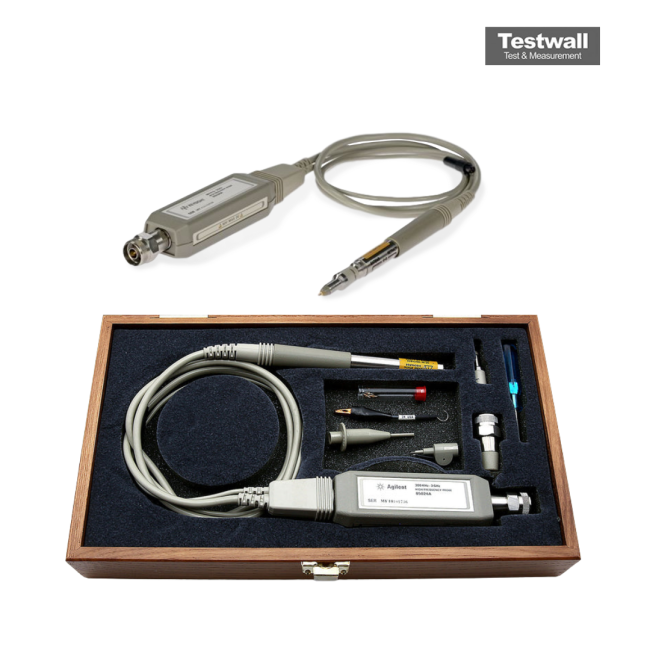

Keysight (Agilent) 85024A
High Frequency Probe; 300 kHz - 3 GHz
300 kHz to 3 GHz Frequency Range
50 Ohm Impedance
40 dB typical Directivity
Type-N (female) Test Port Connector
200 mW (23 dBm) Input Power Maximum
€1,400.00 excl. VAT + free EU delivery
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 3 GHz |
| Impedance | 50 Ohm |
| Directivity | 40 dB typical |
| Test Port Connector | Type-N (female) |
| Input Power Maximum | 200 mW (23 dBm) |
| Coupler Type | High Frequency Probe |
| Coupling Factor | 20 dB nominal |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| Weight | Approximately 0.4 kg (0.9 lb) |
Keysight (Agilent) 85024A Options:
- 85024A - 001 - Adapter cable for use with external power supply (Keysight E3620A, E3630A, or E3631A)
| Model | 85024A |
|---|
RENT AGILENT / HP 85024A Probe (call for availability)
The Agilent / HP 85024A High Frequency Probe makes it easy to perform in-circuit measurements. An input capacitance of only 0.7 pF shunted by 1 megohm of resistance permits high frequency probing without adversely loading the circuit under test. Excellent frequency response and unity gain guarantee high accuracy in swept measurements with this probe. High probe sensitivity and low distortion levels allow measurements to be made while taking advantage of the full dynamic range of Agilent RF analyzers.
Features of the Agilent / HP 85024A High Frequency Probe include:
- Easy to perform in-circuit measurements
- Excellent frequency response and unity gain
- High probe sensitivity
- Low distortion levels
