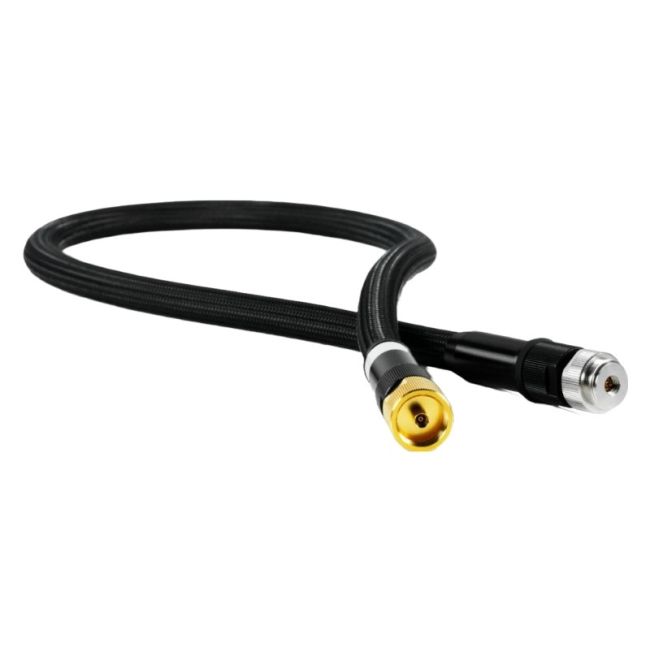

Rohde & Schwarz ZV-Z93
Precision Flex Cable, 26.5 GHz, 3.5mm(m) to 3.5mm(f)
DC to 8.5 GHz Frequency Range
3.5 mm (f) Connector Type
50 Ω Impedance
Electronic Calibration (AutoCal) Calibration Standard Type
2 Number of Ports
| Attribute | Value |
|---|---|
| Frequency Range | DC to 8.5 GHz |
| Connector Type | 3.5 mm (f) |
| Impedance | 50 Ω |
| Calibration Standard Type | Electronic Calibration (AutoCal) |
| Number of Ports | 2 |
| Insertion Loss | < 1.5 dB (typical) |
| Return Loss | > 30 dB (typical) |
| Operating Temperature | 0 °C to 55 °C |
| Interface | USB |
| Compatible Instruments | Rohde & Schwarz Vector Network Analyzers (ZVA, ZVB, ZVL, ZVT series) |
Rohde & Schwarz ZV-Z93 Options:
- ZV-Z93 - .25 - 3.5 mm female to 3.5 mm male, length 635 mm (25 in)
- ZV-Z93 - .38 - 3.5 mm female to 3.5 mm male, length 965 mm (38 in)
| Model | ZV-Z93 |
|---|
ROHDE & SCHWARZ ZV-Z93
The R&S ZV-Z93 3.5mm Cable was designed for extremely accurate measurements in R&D and in the lab.
Features of the ZV-Z93 Cable Set include:
- Extremely stable and robust
- Crush-resistant, 140 kg/cm (800 lbs/inch)
- Highest phase stability with flexure
- Extremely flexible
- Almost no resistance to bending
- No springback
- Smallest bend radius 57 mm (2.25")
- Ruggedized connector for analyzer test port
- Ruggedized connector for DUT port (connector fits any standard connector on DUT side)
- Frequency 26.5 GHz
- Connector, 3.5mm(m) to 3.5mm(f)
