Keysight (Agilent) 85056KE02
| Manufacturer | Keysight (Agilent) |
| Model | 85056KE02 |
| Product | Mechanical Calibration Kit, DC to 40 GHz, 2.92 mm (aka Maury 8770D47) |
| Type | Used |

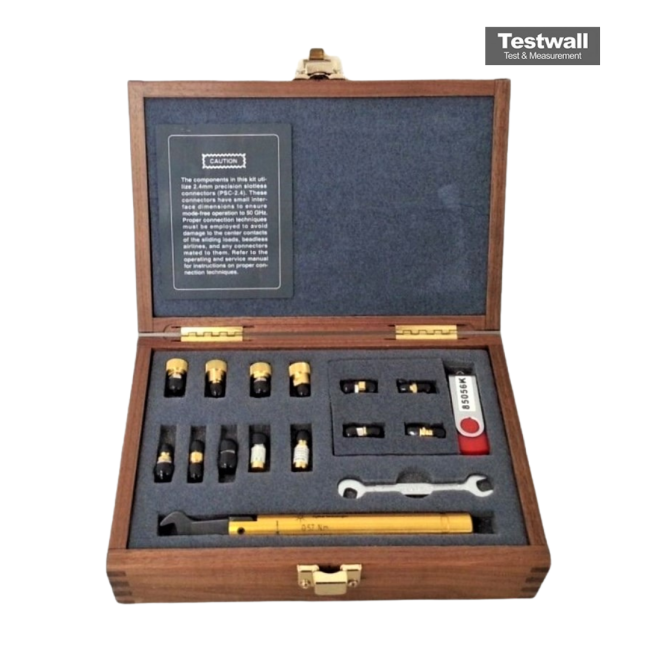

KEYSIGHT 85056KE02 / MARUY 8770D47
The Keysight 85056KE02 Mechanical Calibration kit contains precision standard devices to characterize the systematic errors of Keysight network analyzers. This kit supports 2.92 mm SOLT cal standards including both fixed loads only. It also contains adapters to change the sex of the VNA test port from NMD 2.4 mm to 2.92 mm. Please note, these adapters are for use on VNA's NMD 2.4 mm test port. They are not general purpose adapters. In addition, 2.92 mm in-series adapters (quantity 3) are provided. The kit also includes 5/16 and 7/16 open-end wrenches for proper connection. Included are standards definitions for PNA family VNA's on USB stick.
User must supply 2.92 mm test port cables for transmission measurements.
The Keysight 85056KE02 calibration kit is an ordering convenience to allow the pass through ordering from Keysight Technologies, Inc. for the Maury 8770D47 calibration kit.
Key features of the Keysight 85056KE02 include:
- DC to 40 GHz frequency range
- Calibration standards to perform full 2-port calibration with fixed loads
- Open-end wrenches for properly connecting standards
- Contains one NMD 2.4 mm (f) to 2.92 mm (f) and one NMD 2.4 mm (f) to 2.92 mm (m) test port adapter to adapt the 2.4 mm test ports of the PNA to 2.92 mm. User needs to supply appropriate 2.92 mm test port cables.
- Contains 2.92 mm in-series adapters (3 each)
- Standard definitions on USB stick for loading into PNA family network analyzer
Info from the Maury Microwave datasheet:
The Maury 8770D47 precision 2.92mm calibration kit is specifically designed for use with the Agilent PNA series of vector network analyzers. The kit is used to make error corrected measurements of 2.92mm devices in frequencies ranging from DC to 40 GHz. The kit is supplied with a full set of calibration standards, ncluding shorts,
opens, sliding and/or fixed loads, calibration constants on a USB flash drieve, a torque wrench and two double-end wrenches, plus a set of Maury precision NMD2.4mm test port adapters and 2.92mm in-series adapters.
