Keysight (Agilent) 85092C
| Attribute | Value |
|---|---|
| Frequency Range | DC to 26.5 GHz |
| Connector Type | 3.5 mm (APC-3.5) |
| Number of Ports | 2-Port |
| Calibration Kit Type | Electronic Calibration (ECal) Module |
| Impedance | 50 Ohm |
| Connector Gender | Male/Female Combination |
| Compatible Instruments | Keysight/Agilent Vector Network Analyzers (VNA) |
| Interface | USB |
| Calibration Standards Included | Open, Short, Load, Thru (OSLT) |
| Operating Temperature Range | 0°C to 55°C |
Keysight (Agilent) 85092C Options:
- 85092C - 00F - Replace f-m connectors on ECal module(s) with f-f connectors
- 85092C - 00M - Replace f-m connectors on ECal module(s) with m-m connectors
- 85092C - 00A - Adds male-to-male and female-to-female adapters
- 85092C - UK6 - Commercial calibration certificate with measured data
- 85092C - 1A7 - ISO 17025 compliant calibration
- 85092C - A6J - ANSI Z540 compliant calibration
- 85092C - M0F - f-m connectors on ECal module(s)
- 85092C - 103 - Port A: Type-N 50 ohm (f) mixed-connector
- 85092C - 104 - Port A: Type-N 50 ohm (m) mixed-connector
- 85092C - 201 - Port B: 3.5 mm (f) mixed-connector
- 85092C - 202 - Port B: 3.5 mm (m) mixed-connector
- 85092C - 205 - Port B: 7-16 (f) mixed-connector
- 85092C - 206 - Port B: 7-16 (m) mixed-connector
| Model | 85092C |
|---|

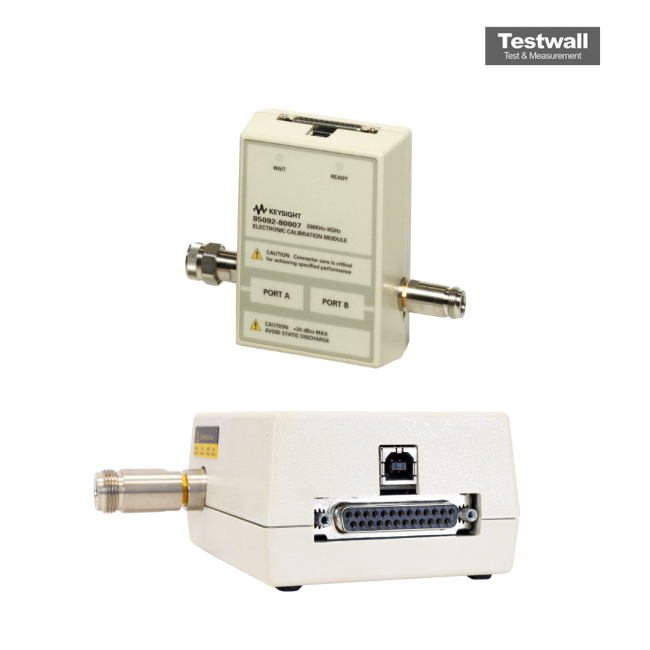

The Keysight (Agilent) 85092C RF Electronic Calibration (ECal) module offers a 300 kHz to 9 GHz frequency range, enabling rapid and accurate full two-port calibration with minimal user interaction. Its solid-state switching and USB interface allow seamless control with Keysight PNA and ENA series network analyzers, significantly reducing calibration time and connector wear while maintaining high accuracy. NIST traceability ensures confidence in results, making it an efficient and precise solution for network analyzer calibration.
The 85092C simplifies device calibration with a single connection and supports non-insertable devices, streamlining processes and minimizing error risk in lab environments.
Testwall can supply the used Keysight (Agilent) 85092C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 85092C.
