Keysight (Agilent) 8517A
| Attribute | Value |
|---|---|
| Frequency Range | 45 MHz to 50 GHz |
| Measurement Parameters | S-parameters (S11, S21, S12, S22) |
| Test Port Connector Type | 2.4 mm (female) |
| Dynamic Range | Up to 90 dB |
| Output Power Range | -15 dBm to 0 dBm |
| Impedance | 50 Ohm |
| Compatible Network Analyzer | HP/Agilent 8510 Series Network Analyzer |
| Number of Test Ports | 2 |
| Interface | HP-IB (GPIB) |
| Power Requirements | 100/120/220/240 VAC, 48-66 Hz |
Keysight (Agilent) 8517A Options:
- 8517A - 001 - Add IF switching
- 8517A - 002 - Delete step attenuators and bias tees
- 8517A - W30 - Extended repair service
- 8517A - W31 - On-site repair service
| Model | 8517A |
|---|

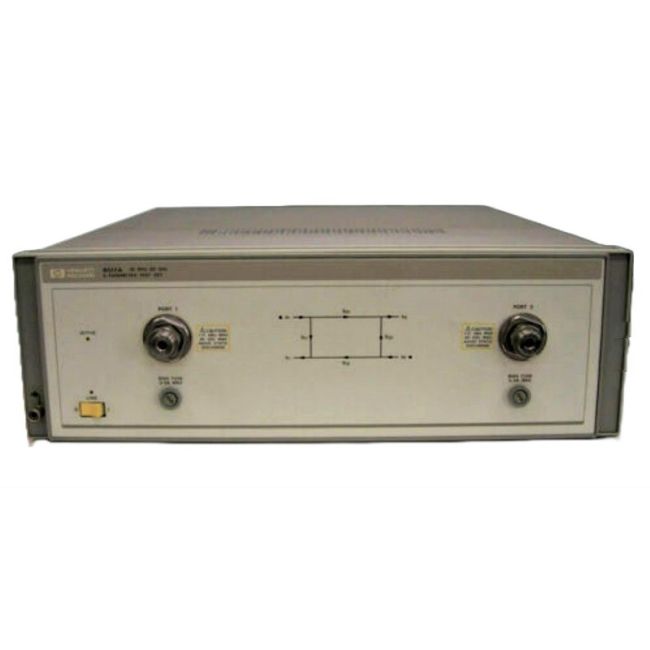

The Keysight (Agilent) 8517A S-Parameter Test Set features a dual port architecture with independent reference channels per port. It includes a built-in electronic RF switch and supports DC bias application up to 500mA and 40 Vdc. With a wide frequency range of 45 MHz to 50 GHz, attenuation up to 90 dB in 10 dB steps, and 2.4mm (M) connectors at 50 ohm nominal impedance, it ensures precision and versatility.
Designed for active device measurement, the 8517A enables accurate S-parameter testing with controlled incident signal power from +3 to -13 dBm.
Testwall can supply the used Keysight (Agilent) 8517A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8517A.
