Keysight (Agilent) 8591A
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 1.8 GHz |
| Resolution Bandwidth | 1 kHz to 3 MHz in 1-3-10 steps |
| Video Bandwidth | 1 Hz to 3 MHz in 1-3-10 steps |
| Displayed Average Noise Level | -115 dBm (typical) at 1 kHz RBW |
| Dynamic Range | 70 dB (typical) |
| Input Impedance | 50 Ohms |
| Maximum Input Power | +30 dBm (1 Watt) |
| Amplitude Accuracy | ±2.0 dB |
| Display | 8 x 10 division LCD screen with 10 dB/division scale |
| Power Requirements | 100–240 VAC, 50/60 Hz |
Keysight (Agilent) 8591A 1.8GHz Spectrum Analyser Options:
- 8591A - 001 - 75Ohm Input
- 8591A - 004 - Precision Frequency Ref
- 8591A - 010 - 50Ohm Tracking Generator
- 8591A - 011 - 75Ohm Tracking Generator
- 8591A - 021 - Hpib Interface
- 8591A - 023 - Rs232C Interface
- 8591A - 026 - 26.5GHZ Extension (8593A Only)
- 8591A - 101 - Fast Time Domain Sweeps
- 8591A - 102 - Am/Fm Demod W/ Speaker & Tv Sync Trigger
- 8591A - 103 - Quasi-Peak Detector, Am/Fm Demod W/ Spkr
| Model | 8591A |
|---|

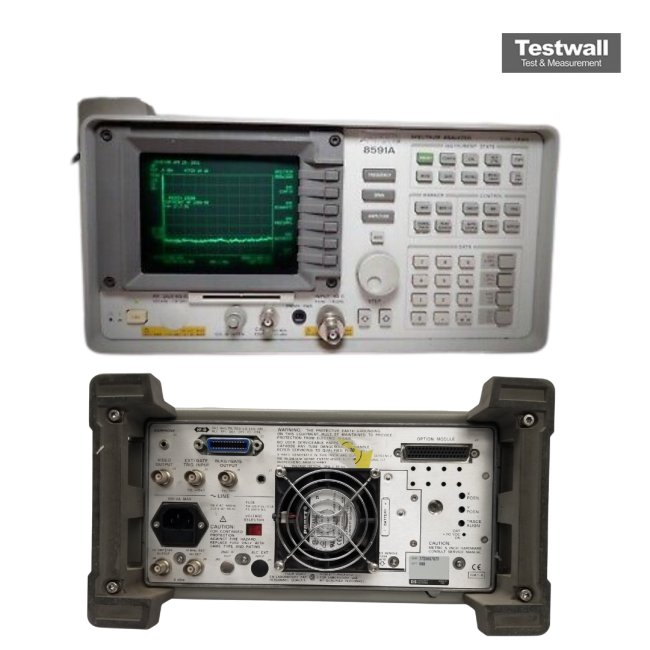

The Keysight (Agilent) 8591A Spectrum Analyzer offers a 9 kHz to 1.8 GHz frequency range with a noise floor of -115 dBm and RBW from 1 kHz to 3 MHz. Lightweight and portable, it includes built-in functions and standard 7.5 ppm frequency accuracy. It features a memory-card reader for easy program and data loading and supports retrofittable card options through a dedicated cardcage for upgrades.
Ideal for mid-range applications, the 8591A is perfect for precise spectrum analysis in various test environments, with options that enhance flexibility and accuracy.
Testwall can supply the used Keysight (Agilent) 8591A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8591A.
