Rohde & Schwarz FSH8 (models .08 and .18)
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 8 GHz |
| Dynamic Range | Up to 110 dB |
| Display Resolution (RBW) | 100 Hz to 3 MHz |
| Displayed Average Noise Level (DANL) | -161 dBm (typical, with preamplifier) |
| Tracking Generator Output Power | -40 dBm to 0 dBm (model .18 includes tracking generator) |
| Battery Operating Time | Approximately 3 hours with standard battery pack |
| Display | 6.5-inch color TFT LCD, 640 x 480 pixels |
| Weight | Approximately 2.9 kg (6.4 lbs) including battery |
| Interfaces | USB, LAN (Ethernet), SD card slot |
| Operating Temperature Range | -10°C to +55°C (14°F to 131°F) |
Rohde & Schwarz FSH8 (models .08 and .18) Options:
- FSH8 - .03 - Handheld Spectrum Analyzer, 100 kHz to 3 GHz, with preamplifier
- FSH8 - .13 - Handheld Spectrum Analyzer, 100 kHz to 3 GHz, with tracking generator
- FSH8 - .23 - Handheld Spectrum Analyzer, 100 kHz to 3 GHz, with tracking generator and preamplifier
- FSH8 - .06 - Handheld Spectrum Analyzer, 100 kHz to 6 GHz, with preamplifier
- FSH8 - .26 - Handheld Spectrum Analyzer, 100 kHz to 6 GHz, with tracking generator and preamplifier
- FSH8 - B1 - Distance-to-Fault Measurement (includes 1 m cable, R&S FSH-Z2 required)
- FSH8 - K1 - Remote Control via RS-232-C
- FSH8 - K2 - Vector Transmission and Reflection Measurements
- FSH8 - K3 - Receiver Mode
| Model | FSH8 |
|---|

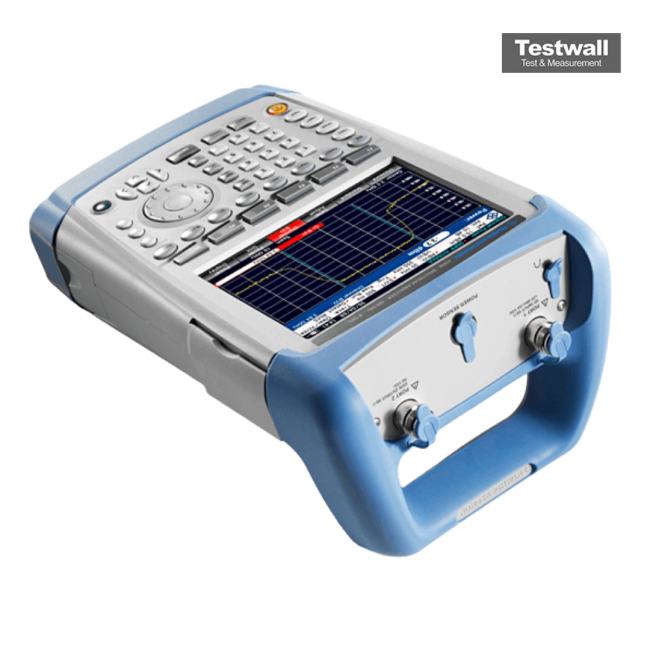

The Rohde & Schwarz FSH8 is a portable spectrum analyzer integrating features such as a power meter, cable and antenna tester, and two-port vector network analyzer depending on the installed model. It delivers precise RF analysis for field service engineers and maintenance teams, with functionality for signal quality assessment, antenna checks, and electric field strength measurements.
Weighing just 3 kg, it offers up to 4.5 hours of battery-powered operation, a vivid color display with monochrome mode, and quick-access function keys for convenience in any field environment.
Testwall can supply the used Rohde & Schwarz FSH8, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSH8.
