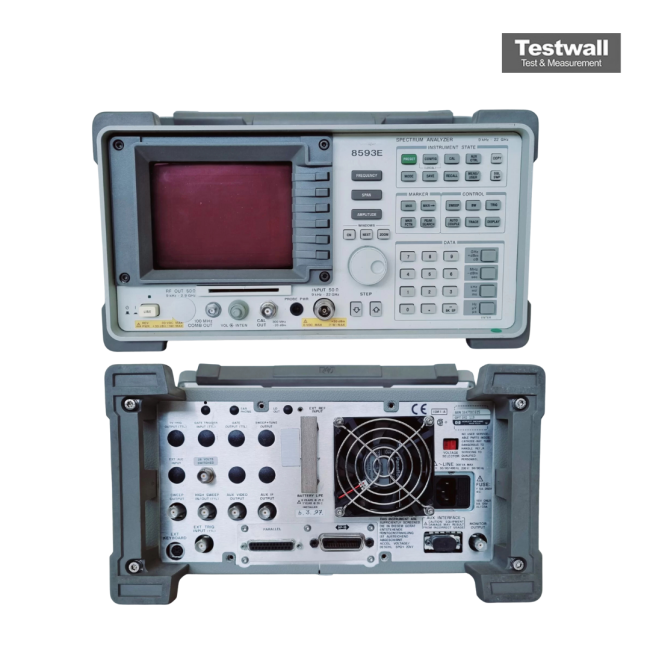

Keysight (Agilent) 8593E
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 22 GHz |
| Display Type | High-resolution CRT display |
| Resolution Bandwidth | 1 kHz to 3 MHz (in 1-3-10 steps) |
| Displayed Average Noise Level (DANL) | -116 dBm (at 1 GHz, 1 kHz RBW) |
| Phase Noise | -85 dBc/Hz at 10 kHz offset (at 1 GHz) |
| Input Impedance | 50 Ohms |
| Dynamic Range | 70 dB (third-order intermodulation) |
| Amplitude Accuracy | ±0.5 dB (at calibrator frequency) |
| Video Bandwidth | 1 Hz to 3 MHz |
| Power Requirements | 100/120/220/240 VAC, 48-66 Hz, 350 W maximum |
Keysight (Agilent) 8593E 9KHz-22GHz Spectrum Analyser Options:
- 8593E - 004 - Precision Frequency Reference
- 8593E - 009 - Lo And Sweep+Tune Outputs On Rear Panel
- 8593E - 010 - 50-Ohm, 9KHZ-2.9GHZ Tracking Generator
- 8593E - 012 - Dect Source
- 8593E - 021 - Gpib Interface
- 8593E - 023 - Rs-232 Interface
- 8593E - 026 - Frequency Extension 26.5GHZ (Apc 3.5Mm)
- 8593E - 027 - Frequency Extension 26.5GHZ (N Type)
- 8593E - 040 - Front Panel Protective Cover W/ Storage
- 8593E - 041 - Gpib And Parallel Interfaces
- 8593E - 043 - Rs-232 And Parallel Interfaces
- 8593E - 050 - Improved Amplitude Accuracy For Nadc/Pcs
- 8593E - 051 - Improved Amplitude Accuracy For Pdc
- 8593E - 052 - Improved Amplitude Accuracy For Phs Band
- 8593E - 053 - Improved Amplitude Accuracy For Cdma
- 8593E - 101 - Fast Time-Domain Sweeps
- 8593E - 102 - Am/Fm Demod W/ Speaker & Tv Sync Trigger
- 8593E - 103 - Quasi-Peak Detector, Am/Fm Demod W/ Spkr
- 8593E - 105 - Time-Gated Spectrum Analysis
- 8593E - 107 - Tv Receiver/Video Tester
- 8593E - 111 - Group Delay Measurement Card
- 8593E - 112 - Dect Demodulator Card
- 8593E - 119 - Noise Figure Card
- 8593E - 130 - Narrow Resolution Bandwidths
- 8593E - 140 - Narrow Res Bw & Precision Frequency Ref.
- 8593E - 151 - Digital Demod Down Converter/Fast Adc
- 8593E - 160 - Mobile Comm F/W & Dsp For Opt. 151 Hw
- 8593E - 163 - Gsm/Dcs Dsp F/W Board For Option 151 Hw
- 8593E - 180 - Tv Picture On Screen
- 8593E - 301 - Tv Sync, Fast Time-Domain Sweeps, Am/Fm
- 8593E - 711 - 50/75-Ohm Matching Pad With Dc Block
- 8593E - 908 - Rackmount (Without Handles)
- 8593E - B70 - Benchlink Spectrum Analyzer S/W
- 8593E - BD0 - Code Division Multiple Access
- 8593E - BD1 - Global System For Mobile Communication
- 8593E - BD2 - North American Digital Cellular System
- 8593E - BD3 - Pacific Digital Cellular System
- 8593E - BD4 - Personal Handyphone System
- 8593E - E67 - Dect Ordering Convenience Package
- 8593E - J62 - Improved Amplitude Accuracy In Gsm900 Band Absolute: 卤1.0 Db (1850 To 1990 MHZ)
- 8593E - J63 - Improved Amplitude Accuracy In Dcs1800 Band Absolute: 卤1.0 Db (1710 To 1880 MHZ)
- 8593E - J66 - Improved Amplitude Accuracy In Pcs1900 Band Absolute: 卤1.0 Db (1850 To 1990 MHZ)
| Model | 8593E |
|---|
The Keysight (Agilent) 8593E Spectrum Analyzer spans 9kHz to 22GHz with a -114dBm noise floor, RBW from 1kHz to 3MHz (optional down to 30Hz), and a second-order dynamic range of 77dB. It supports numerous add-ons via circuit-card options like tracking generators, digital demodulators, and EMI filters. Its user-friendly interface includes automated measurements, marker functions, and expandable configurations through memory cards.
Ideal for RF, microwave, EMC, and digital communications applications, this analyzer supports tasks like cable TV, GSM 900 testing, and adjacent-channel power evaluation.
Testwall can supply the used Keysight (Agilent) 8593E, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8593E.
