Keysight (Agilent) 89430A
| Attribute | Value |
|---|---|
| Frequency Range | DC to 10 MHz |
| Number of Channels | 2 RF input channels |
| Dynamic Range | Up to 90 dB |
| Input Impedance | 50 Ohm |
| Amplitude Accuracy | ±0.5 dB |
| Analysis Bandwidth | 10 MHz |
| Display Resolution | 800 x 600 pixels (SVGA) |
| Interface | GPIB (IEEE-488), RS-232 |
| Power Requirements | 100–240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 55°C |
Keysight (Agilent) 89430A Options:
- 89430A - AYA - Vector Modulation Analysis (Option UFG recommended)
- 89430A - AYB - Waterfall and Spectrogram (Option UFG recommended)
- 89430A - AYC - Freq. Reference Retrofit (reverses Opt. AY4) - Retrofit at service center only
- 89430A - AYH - Digital Video Modulation Analysis (Options AYA, UFG required)
- 89430A - AY4 - Delete Precision Frequency Reference (Retrofit unavailable)
- 89430A - AY5 - Precision Frequency Reference - Retrofit at service center only
- 89430A - AY7 - Second 10 MHz Input Channel
- 89430A - AY8 - Internal RF Source - Retrofit at factory (HP 89440/430A)
- 89430A - AY9 - Extend Time Capture to 1 Msample
- 89430A - UE2 - Firmware Upgrade (HP 894XXU only)
- 89430A - UFG - 4 MB Extended RAM, Additional I/O
- 89430A - UG7 - Advanced LAN Support (Option UFG required)
- 89430A - UK6 - Commercial Calibration Certificate (Retrofit unavailable)
- 89430A - 1C2 - HP Instrument BASIC
- 89430A - 1D7 - 50-75 Ohm Minimum Loss Pad
- 89430A - 1F0 - PC-style Keyboard - U.S. version
- 89430A - AX3 - Front Handle Kit
- 89430A - AX4 - Rack Flange Kit
- 89430A - AX5 - Flange and Handle Kit
- 89430A - 0B1 - Extra Manual Set
- 89430A - 0BU - Extra Instrument BASIC Manuals
- 89430A - 0B3 - Service Manual
- 89430A - AVK - Printed Version of Online Help
- 89430A - 1BH - General Export License version (Retrofit unavailable)
- 89430A - 1BP - MIL STD 45662A Calibration with Test Data (Retrofit unavailable)
- 89430A - HP 41800A - Active probe 5 Hz - 500 MHz, 100 kΩ / 3 pF input impedance
- 89430A - HP 1141A - Active differential probe dc - 200 MHz, 1 MΩ / 7 pF input impedance
- 89430A - HP 10020A - Resistive divider probe 1:1, 10:1 or 100:1, for 50Ω systems
- 89430A - HP 3488A - Switch control unit
- 89430A - HP 3235A - Switch control unit
- 89430A - HP 8447D - Preamplifier 25 dB gain, 100 kHz - 1.3 GHz, NF <8.5 dB
- 89430A - HP 8449D - Preamplifier 25 dB gain, 100 kHz - 1.8 GHz, NF <8.5 dB
- 89430A - HP 11852B Opt. CO4 - 50Ω - 75Ω minimum loss pad, matches 50Ω analyzer input to 75Ω environment
- 89430A - HP 89450A - DMCA Radio Test Personality (Requires option AYA)
- 89430A - HP 89451A - Radio Test Personality (Requires option AYA)
- 89430A - HP 89400+24C - Scheduled course, open enrollment; presented at HP location
- 89430A - HP 89400+24Y - Dedicated course, closed enrollment; presented at your site
| Model | 89430A |
|---|

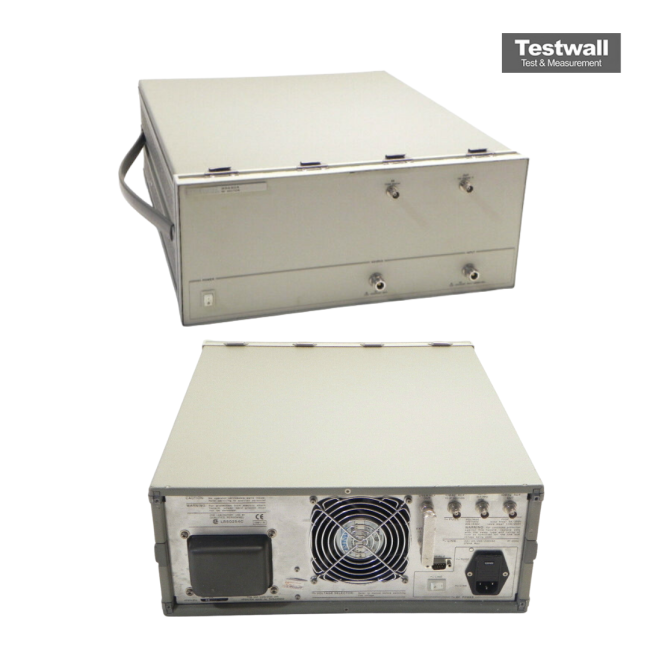

The Keysight (Agilent) 89430A is a 1.8 GHz RF module designed for use with the 89410A to form the 89440A Vector Signal Analyzer system. It includes an integrated internal source, enabling precise RF analysis capabilities for advanced signal characterization.
This RF section enhances signal analysis by offering seamless integration, robust performance, and compatibility with vector signal analysis applications. It's ideal for R&D and production environments requiring detailed modulation and spectrum analysis.
Testwall can supply the used Keysight (Agilent) 89430A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 89430A.
