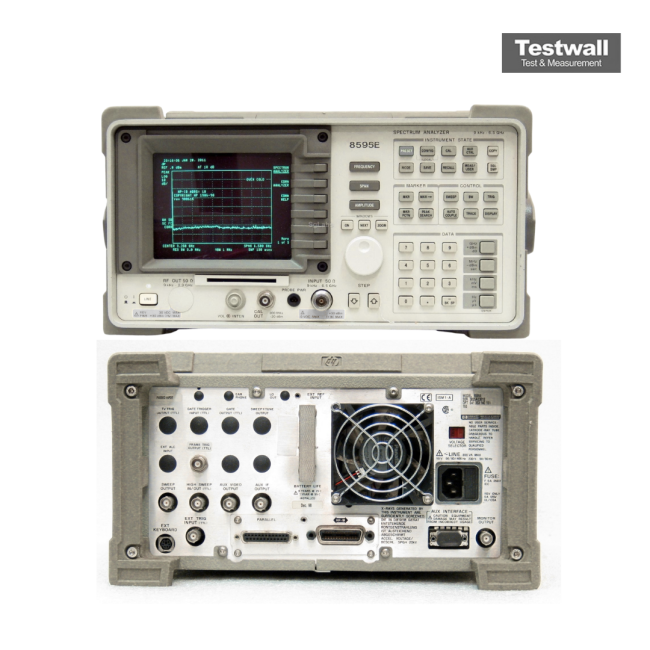

Keysight (Agilent) 8595E
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 6.5 GHz |
| Display | High-resolution LCD with 600 x 400 pixels |
| Amplitude Range | -135 dBm to +30 dBm |
| Resolution Bandwidth | 1 kHz to 5 MHz in 1-3-10 steps |
| Video Bandwidth | 1 Hz to 5 MHz in 1-3-10 steps |
| Phase Noise | -98 dBc/Hz at 10 kHz offset (typical) |
| Dynamic Range | Greater than 85 dB |
| Input Impedance | 50 Ohms |
| DANL (Displayed Average Noise Level) | -145 dBm at 1 kHz RBW (typical) |
| Interface / Connectivity | GPIB (IEEE-488), RS-232 |
Keysight (Agilent) 8595E 6.5GHz Spectrum Analyser Options:
- 8595E - 004 - Precision Frequency Reference
- 8595E - 009 - Lo And Sweep+Tune Outputs On Rear Panel
- 8595E - 010 - 50-Ohm, 9KHZ-2.9GHZ Tracking Generator
- 8595E - 012 - Dect Source
- 8595E - 021 - Gpib Interface
- 8595E - 023 - Rs-232 Interface
- 8595E - 040 - Front Panel Protective Cover W/ Storage
- 8595E - 041 - Gpib And Parallel Interfaces
- 8595E - 043 - Rs-232 And Parallel Interfaces
- 8595E - 050 - Improved Amplitude Accuracy For Nadc/Pcs
- 8595E - 051 - Improved Amplitude Accuracy For Pdc
- 8595E - 052 - Improved Amplitude Accuracy For Phs Band
- 8595E - 053 - Improved Amplitude Accuracy For Cdma
- 8595E - 101 - Fast Time-Domain Sweeps
- 8595E - 102 - Am/Fm Demod W/ Speaker & Tv Sync Trigger
- 8595E - 103 - Quasi-Peak Detector, Am/Fm Demod W/ Spkr
- 8595E - 105 - Time-Gated Spectrum Analysis
- 8595E - 107 - Tv Receiver/Video Tester
- 8595E - 111 - Group Delay Measurement Card
- 8595E - 112 - Dect Demodulator Card
- 8595E - 119 - Noise Figure Card
- 8595E - 130 - Narrow Resolution Bandwidths
- 8595E - 140 - Narrow Res Bw & Precision Frequency Ref.
- 8595E - 151 - Digital Demod Down Converter/Fast Adc
- 8595E - 160 - Mobile Comm F/W & Dsp For Opt. 151 Hw
- 8595E - 163 - Gsm/Dcs Dsp F/W Board For Option 151 Hw
- 8595E - 180 - Tv Picture On Screen
- 8595E - 301 - Tv Sync, Fast Time-Domain Sweeps, Am/Fm
- 8595E - 711 - 50/75-Ohm Matching Pad With Dc Block
- 8595E - 908 - Rackmount (Without Handles)
- 8595E - B70 - Benchlink Spectrum Analyzer S/W
- 8595E - BD0 - Code Division Multiple Access
- 8595E - BD1 - Global System For Mobile Communication
- 8595E - BD2 - North American Digital Cellular System
- 8595E - BD3 - Pacific Digital Cellular System
- 8595E - BD4 - Personal Handyphone System
- 8595E - E67 - Dect Ordering Convenience Package
- 8595E - J62 - Improved Amplitude Accuracy In Gsm900 Band Absolute: 卤1.0 Db (1850 To 1990 MHZ)
- 8595E - J63 - Improved Amplitude Accuracy In Dcs1800 Band Absolute: 卤1.0 Db (1710 To 1880 MHZ)
- 8595E - J66 - Improved Amplitude Accuracy In Pcs1900 Band Absolute: 卤1.0 Db (1850 To 1990 MHZ)
| Model | 8595E |
|---|
The Keysight (Agilent) 8595E Spectrum Analyzer offers a 9 kHz to 6.5 GHz frequency range with a -112 dBm noise floor, optional RBWs down to 30 Hz, and low phase noise of 105 dBc at 30 kHz. It supports modular circuit-card options, built-in tracking generators, and application-specific measurement personalities. The analyzer is compact, reliable, and ideal for advanced RF, microwave, and digital signal analysis.
It features intuitive controls, frequency panning, and high memory capacity for storing traces. Time-stamping and direct output to printers ensure easy documentation of results.
Testwall can supply the used Keysight (Agilent) 8595E, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8595E.
