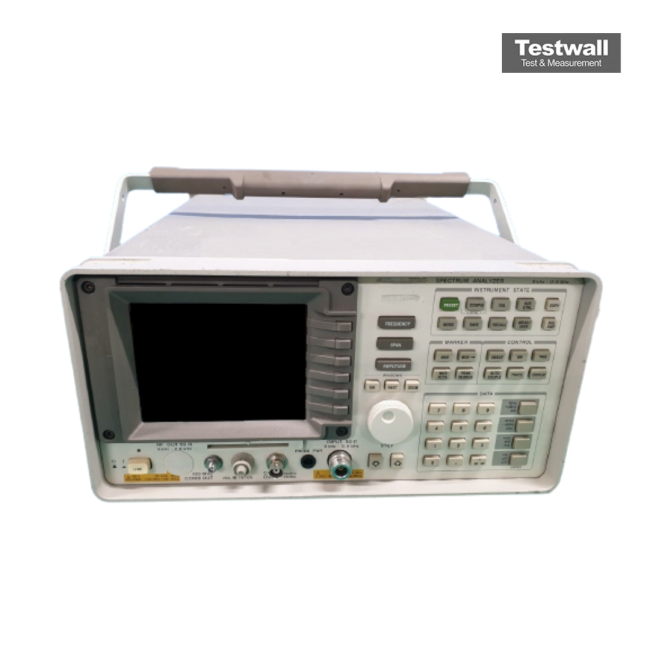

Keysight (Agilent) 8596EM
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 12.8 GHz |
| Displayed Average Noise Level (DANL) | -147 dBm (1 Hz RBW, 1 GHz) |
| Frequency Resolution | 1 Hz |
| Resolution Bandwidth (RBW) | 1 Hz to 5 MHz (-3 dB), 200 Hz to 5 MHz (EMC, 6 dB) |
| Input Impedance | 50 Ohms |
| Maximum Input Power (Damage Level) | +30 dBm (1 W) |
| Dynamic Range | >90 dB |
| Phase Noise | -98 dBc/Hz at 10 kHz offset (1 GHz carrier) |
| EMC Compliance Standards | CISPR, MIL-STD, FCC, VDE quasi-peak and average detectors |
| Display | 8.3-inch color CRT, 600 x 480 pixels |
| Model | 8596EM |
|---|
The Keysight (Agilent) 8596EM Spectrum Analyzer offers a 9kHz to 12.8GHz frequency range, with a low -112dBm noise floor at 1kHz. It features resolution bandwidths from 1kHz to 3MHz, optionally down to 30Hz, and supports measurement personalities for RF, EMC, cellular, and more.
Equipped with automatic calibration, dual-window display, memory card support, and customizable circuit cards, it excels in RF, microwave, and digital analysis with precision and flexibility.
Testwall can supply the used Keysight (Agilent) 8596EM, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8596EM.
