Keysight (Agilent) B1520A
| Manufacturer | Keysight (Agilent) |
| Model | B1520A |
| Product | Multi-frequency capacitance measurement unit (MFCMU) |
| Type | Used |

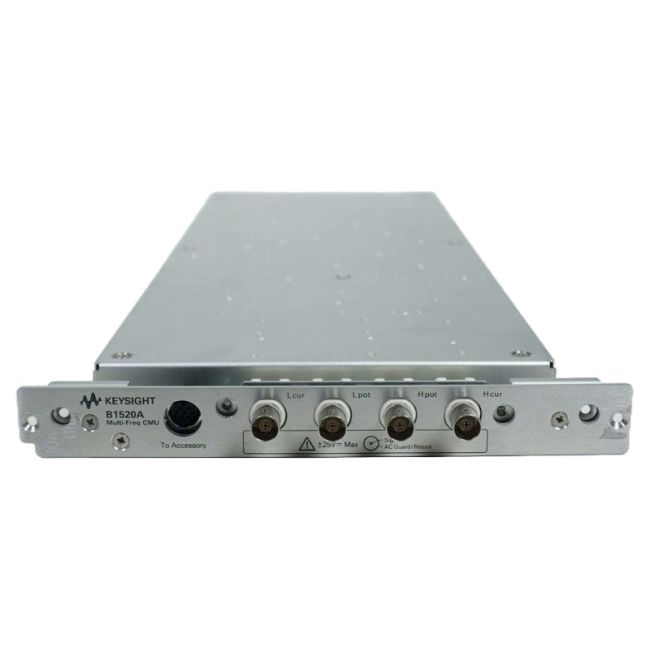

Keysight (Agilent) B1520A Multi-frequency Capacitance Measurement Unit (MFCMU)
The Keysight B1520A Multi Frequency Capacitance Measurement Unit Module is an advanced and versatile tool designed for the B1500 semiconductor device analyzer. This module enables precise and accurate measurements of capacitance at multiple frequencies, offering valuable insights into the behavior and performance of semiconductor devices. With its high-frequency range and wide measurement range, the Keysight (Agilent) B1520A module provides researchers and engineers with detailed characterization capabilities for a wide range of devices, including RF components, power devices, and sensors.
Keysight B1520A Multi Frequency Capacitance Measurement Unit (MFCMU) is backed up by Keysight LCR meter technology. It can expand accurate capacitance measurement capability on the Keysight B1500A Semiconductor Device Parameter Analyzer. The combination of MFCMU and Source/Measure Units (SMUs) makes Keysight B1500A complete IV and CV measurement solution from basic IV to various capacitance measurements such as CV, C-t, C-f and Quasi-Static CV (QS-CV) in a box. The module's user-friendly interface and comprehensive software package further enhance its usability, allowing users to efficiently analyze and optimize device performance. Overall, the Keysight B1520A Multi Frequency Capacitance Measurement Unit Module for B1500 is a powerful and indispensable tool for semiconductor device analysis and research.
Specifications for the Keysight (Agilent) B1520A Multi-frequency Capacitance Measurement Unit (MFCMU) Include:
| Frequency range | 1 kHz to 5 MH |
| Signal level | Up to 250 mVrms |
| DC voltage | 25 V (built-in), 100V (with SMU and SCUU) |
