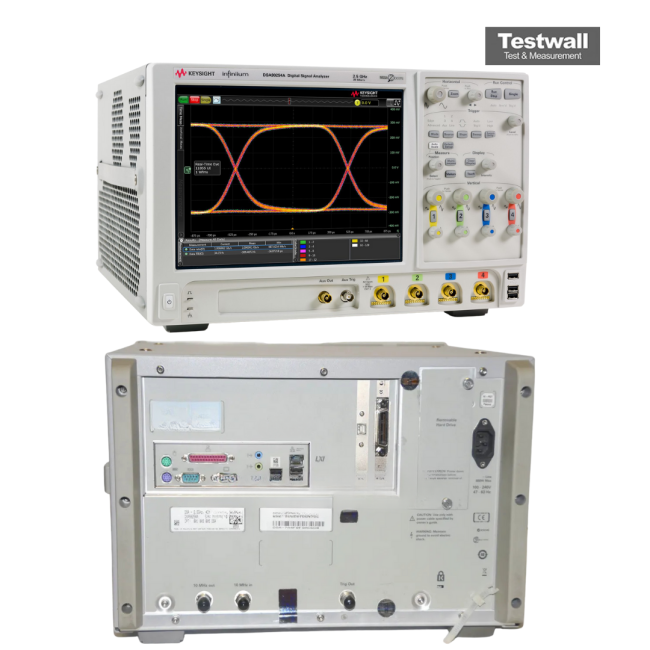

Keysight (Agilent) DSA90254A 4 Ch 2.5 GHz Digital Signal Analyzer
4 Ch 2.5 GHz Digital Signal Analyzer
4 Number of Channels
2.5 GHz Bandwidth
20 GSa/s Sample Rate
8-bit ADC (up to 12-bit with averaging) Vertical Resolution
Up to 2 Gpts (standard 50 Mpts per channel) Memory Depth
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Bandwidth | 2.5 GHz |
| Sample Rate | 20 GSa/s |
| Vertical Resolution | 8-bit ADC (up to 12-bit with averaging) |
| Memory Depth | Up to 2 Gpts (standard 50 Mpts per channel) |
| Rise Time | 160 ps |
| Input Impedance | 50 Ω or 1 MΩ |
| Display | 15-inch XGA color display (1024 x 768) |
| Connectivity / Interface | LAN (LXI), USB, GPIB |
| Operating System | Windows XP Professional |
Keysight Technologies DSA90254A 4 Ch 2.5 GHz Digital Signal Analyzer Options:
- DSA90254A - 801 - 80 GBytes or greater hard disk drive. Replaces internal hard disk drive with a removable hard disk drive.
- DSA90254A - 803 - Additional 2 GByte CPU Memory (4 GByte total)
- DSA90254A - 805 - GPIB card
- DSA90254A - 807 - High Impedance Adapter (includes one 10073C passive probe)
- DSA90254A - 821 - Precision BNC to SMA adaptors (qty 2)
- DSA90254A - 900 - Power Cord, United Kingdom
- DSA90254A - 901 - Power Cord, Australia
- DSA90254A - 902 - Power Cord, Europe
- DSA90254A - 903 - Power Cord, United States
- DSA90254A - 906 - Power Cord, Switzerland
- DSA90254A - 912 - Power Cord, Denmark
- DSA90254A - 917 - Power Cord, Africa
- DSA90254A - 918 - Power Cord, Japan
- DSA90254A - 919 - Power Cord, Israel
- DSA90254A - 920 - Power Cord, Argentina
- DSA90254A - 921 - Power Cord, Chile
- DSA90254A - 922 - Power Cord, China
- DSA90254A - 927 - Power Cord, Thailand
- DSA90254A - 1CM - Rackmount Kit
- DSA90254A - A6J - ANSI Z540 compliant calibration
- DSA90254A - 1A7 - ISO17025 compliant calibration
- DSA90254A - 002 - EZJIT Jitter Analysis Software
- DSA90254A - 004 - EZJIT Plus Jitter Analysis Software
- DSA90254A - 006 - My Infiniium Integration Package
- DSA90254A - 005 - Noise Reduction and Bandwidth Control
- DSA90254A - 011 - Infiniium Application Remote Program Interface Software
- DSA90254A - 010 - Infiniium User Defined Function Software
- DSA90254A - 009 - InfiniiScan Event Identification Software
- DSA90254A - 007 - I2C and SPI Low-speed Data Analysis
- DSA90254A - 008 - CAN Serial Data Analysis Software
- DSA90254A - 029 - USB 2.0 Validation and Compliance Software
- DSA90254A - 003 - High Speed Serial Data Analysis Software
- DSA90254A - 024 - Fully Buffered DIMM Validation and Compliance Software
- DSA90254A - 022 - PCI Express Electrical Performance Validation and Compliance Software
- DSA90254A - 021 - Ethernet Electrical Performance Validation and Compliance Software
- DSA90254A - 031 - DDR1 Validation and Compliance Software
- DSA90254A - 032 - DDR2 Validation and Compliance Software
- DSA90254A - 033 - DDR3 Validation and Compliance Software
- DSA90254A - 030 - XAUI Electrical Validation and Compliance Software with 10GBASE-CX4, CPRI, OBSAI, and Serial RapidIO Support
- DSA90254A - 028 - DisplayPort Validation and Compliance Software
- DSA90254A - 027 - Serial Attached SCSI Electrical Performance Validation and Compliance Software
- DSA90254A - 026 - Serial ATA Electrical Performance Validation and Compliance Software
- DSA90254A - 025 - Fibre Channel Validation and Compliance Software
- DSA90254A - 023 - HDMI Electrical Performance Validation and Compliance Software
| Model | DSA90254A |
|---|
The Keysight (Agilent) DSA90254A is a 4-channel real-time oscilloscope offering 2.5 GHz native bandwidth, upgradeable to 13 GHz, and 20 GSa/s sampling with 1 Gpts memory per channel.
It includes integrated de-embedding hardware, ultra-low noise floor, and a suite of tools for signal integrity, protocol analysis, and compliance testing.
Testwall can supply the used Keysight (Agilent) DSA90254A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSA90254A.
