Keysight (Agilent)

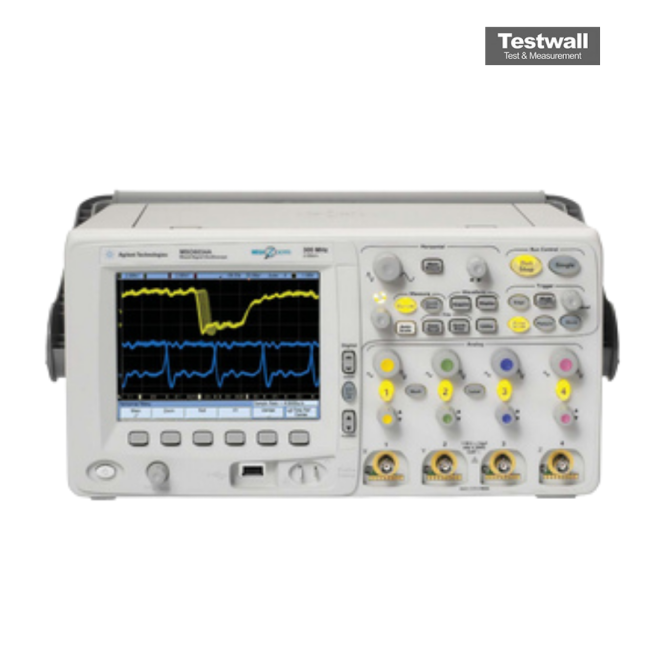

Keysight (Agilent) DSO6054A 4 Ch 500 MHz Digital Storage Oscilloscope
4 Ch 500 MHz Digital Storage Oscilloscope
500 MHz Bandwidth
4 Number of Channels
4 GSa/s Maximum Sample Rate
8 Mpts (standard), 16 Mpts (optional) Memory Depth
8-bit Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 4 |
| Maximum Sample Rate | 4 GSa/s |
| Memory Depth | 8 Mpts (standard), 16 Mpts (optional) |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity Range | 1 mV/div to 5 V/div |
| Timebase Range | 2 ns/div to 50 s/div |
| Display | 8.5-inch SVGA color display (800 x 600 resolution) |
| Input Impedance | 1 MΩ ± 1% in parallel with 13 pF ± 3 pF |
| Trigger Types | Edge, Glitch, Pattern, CAN, LIN, I2C, SPI, USB, and more |
Keysight Technologies DSO6054A 4 Ch 500 MHz Digital Storage Oscilloscope Options:
- DSO6054A - SEC - Secure Environment Mode Option (installed at factory on new order)
- DSO6054A - BAT - Battery Operation (available at time of purchase only)
- DSO6054A - 2MH - Memory Depth Upgrade to 2 Mpts half channel / 1 Mpts each channel
- DSO6054A - 8MH - Memory Depth Upgrade to 8 Mpts half channel / 4 Mpts each channel
- DSO6054A - LSS - I2C/SPI Serial Decode (Low Speed Serial decode option)
- DSO6054A - AMS - CAN/LIN Automotive Triggering and Decode (Automotive Serial option)
| Model | DSO6054A |
|---|
The Keysight (Agilent) DSO6054A features 4 channels at 500 MHz, with 4 GSa/s sampling, 8 Mpts memory, and support for advanced triggering and FPGA debug applications.
Comes with probes, documentation, and industry-standard connectivity including LAN, USB, and GPIB.
Testwall can supply the used Keysight (Agilent) DSO6054A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSO6054A.
